IO Crest PCIe 3.0 x4 to 4 Ports USB 3.0 Host Controller Card - IO-PCEUSB3.0-4U
Provides four independent USB 3.0 ports with a total bandwidth of 20Gbps,Up to 5Gbps transfer rate per USB 3.0 interface, 4 external USB 3.0 ports, 10x faster than USB2.0, Supports x4, x8, x16 (lane) PCI Express Bus connector keys.
Features
- Provides four independent USB 3.0 ports with a total bandwidth of 20Gbps
- Up to 5Gbps transfer rate per USB 3.0 interface
- 4 external USB3.0 ports, 10x faster than USB2.0
- Supports x4, x8, x16 (lane) PCI Express Bus connector keys.
- It is a industrial level high performance USB card
- Supports USB debugging capability on all super-speed ports.
- USB3.0 Specification compliant, backward compatible with USB2.0 & USB1.1
- Compliant with PCI Express Base Specification Revision 2.0
- Supports PCI Bus Power Management Interface Specification Revision 1.2
- Supports USB data transfer rate of 5G/480/12/1.5 Mbps
- Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
- Power Input: 15-pin SATA CD-ROM Type Power Connector
- Plug and play installation
- Operating Temperature: 0 â-60 â
- Relative Humidity: 10%-90%(non-condensing)
- Storage Temperature: -20â-80â
- Relative Humidity: 5%-90%(non-condensing)
System Requirements
- Windows10ã8 /ã8.1ã7ãVistaãXPã2000
- WindowsServer2012ã2008 R2ã2003
- MacOS10.x
- Linux 2.6.31 or later

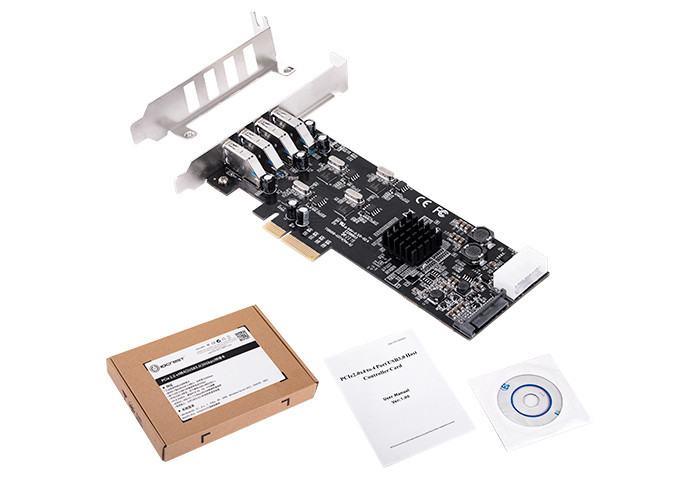

Package Contents
- 1 × PCIe to 4 Ports USB3.0 Card
- 1 × User Manual
- 1 × Low Profile Bracket
- 1 × Driver CD
