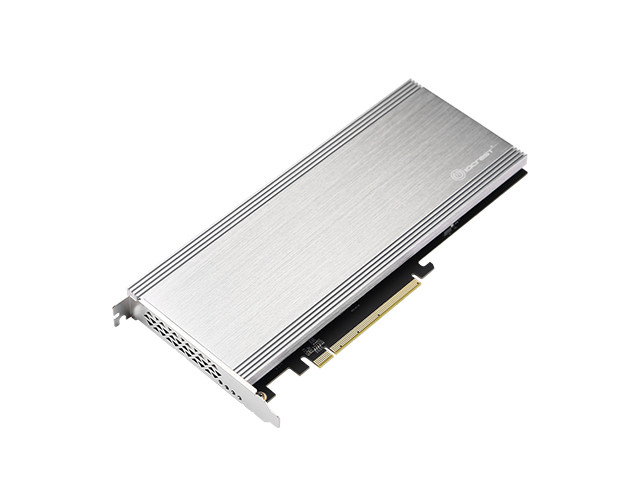

IO Crest PCIe 4.0 x16 to 4x M.2 NVMe Adapter Card - IO-PCE44M2-01
Supports 4 NVMe M.2 (2242/2260/2280/22110) up to 256Gbps in one card by utilizing PCle 4.0 bandwidth,PCIE 4.0 X16 Interface with server-grade (low loss) PCB material, compatible with PCI express x8 and x16 slots .Supports 14W power consumption SSDs for next gen latest drives
Features
- Supports 4 NVMe M.2 (2242/2260/2280/22110) up to 256Gbps in one card by utilizing PCle 4.0 bandwidth
- PCIE 4.0 X16 Interface with server-grade (low loss) PCB material, compatible with PCI express x8 and x16 slots .
- Supports 14W power consumption SSDs for next gen latest drives
- Stylish heatsink and integrated blower style fan prevent M. 2 throttling
- Supports PCIe x16 slot
- Support PCIe 4.0,3.1,3.0, PCIe 2.0 motherboard
- Compliant with PCI Express M.2 specification 1.0,1.1
- Supports data transfer up to 2.5Gb(250MB/s),5Gb(500MB/s),8Gb(1GB/s),16Gb(2GB/s)
- Connects PCIE motherboard to NGFF M Key SSD
- Supports 2230, 2242, 2260, 2280 size NGFF SSD
- Supports four NGFF M.2 M Key socket available
- 4 screw holes 2230/2242/2260/2280 available to fix NGFF SSD card
- 4 screw holes available to fix PCB board
- Easy installation & no driver required
Ps. Motherboards and BIOS without bifurcation support can only recognize one module.
System Requirements
- Supports Windows,Linux
- PC with one free PCI Express x16 / x32 slot
Package Contents
- 1 x PCIe 4.0 x 16 to 4 x M.2(M-Key) card
- 1 x User Manual
- 1 x M.2 Mounting material
- 1 x Screwdriver
- 4 x self-adhesive thermal pad
Note: Contents may vary depending on country and market
