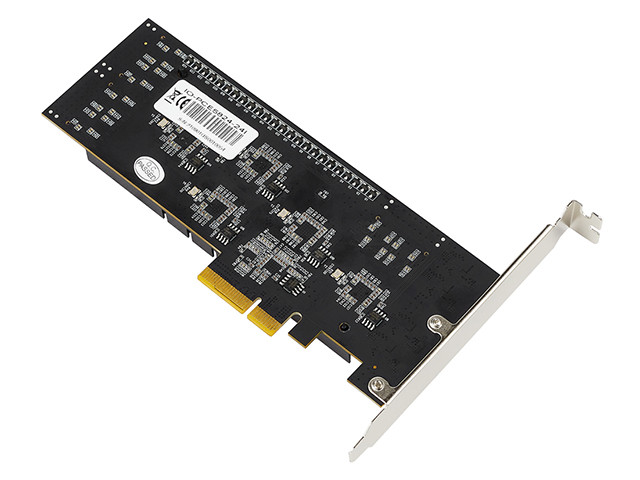

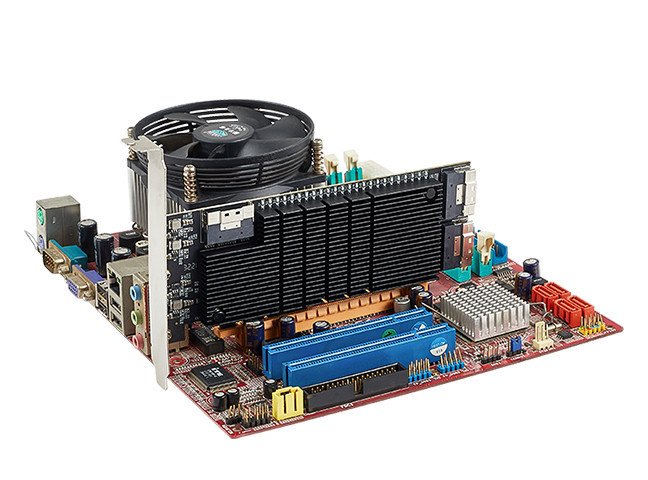

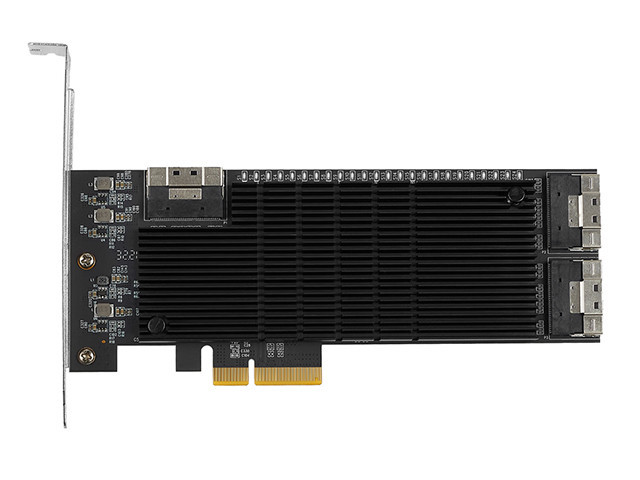

IO Crest PCIe Gen3x4 to 24 Port SATA 6G Card - IO-PCE5824-24I
Supports 24-port 6Gb/s SATA III interface.Supports Port Multiplierï¼Supports 24-port 6Gb/s SATA III interface.Supports Port Multiplierï¼Supports command-based and FIS-based for Port Multiplier.Supports AHCI mode and IDE programming interface.
Features
- Supports up to two lane of PCI Express.
- Complies with PCI Express Base Specification Revision 3.1a.
- Compliant with Serial ATA Port Multiplier Spec. Revision 1.2
- Compliant with Serial ATA Port Selector Spec. Revision 1.0
- Compliant with Serial ATA PHY Electrical Spec. Revision 1.0
- Complies with SATA Specification Revision 3.2
- Supports PCIe link layer power saving mode.
- Supports 24-port 6Gb/s SATA III interface.
- Supports Port Multiplier
- Supports command-based and FIS-based for Port Multiplier.
- Supports AHCI mode and IDE programming interface.
- Supports Native Command Queue (NCQ).
- Supports SATA link power saving mode (partial and slumber)
- Supports SATA plug-in detection capable.
- Supports drive power control and staggered spin-up.
- Supports SATA Partial / Slumber power management state.
Note:Don’t support system boot disk
System Requirements
- Windows OS
- Linux-base OS
Package Contents
- 1 × PCIe Gen3x4 to 24 SATA 6Gb/s Card
- 1 × User Manual
- 3 × Slim SAS SFF-8654 8i 74P to 8*SATA Cable
- 1 x Low Profile Bracket
Note: Contents may vary depending on country/market
