IO Crest PCIe to 16 port SATA III Controller Card - IO-PCE9215-16I
Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express 4x ,Compliant with Serial ATA Specification 3.1,PCI Express x4 interface, and compatible with PCI Express x8 and x16 slots.
Features
- Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express 4x
- Compliant with Serial ATA Specification 3.1
- PCI Express x4 interface, and compatible with PCI Express x8 and x16 slots.
- Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
- Hot plug and Hot Swap.
- Supports Native Command Queue (NCQ)
- Supports AHCI 1.0 programming interface registers for the SATA controller
- Supports aggressive power management
- Supports error reporting ,recovery and correction
- Supports Message Signaled Interrupt (MSI)
- Supports Programmable transmitter signal levels
- Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
- Supports Port Multiplier FIS based switching or command based switching.
- Supports Partial and Slumber Power Management states
- Supports Staggered Spin-up
- Compatible with SATA 6G, 3G and 1.5G Hard Drives.
Note: Not Supported RAID on PM

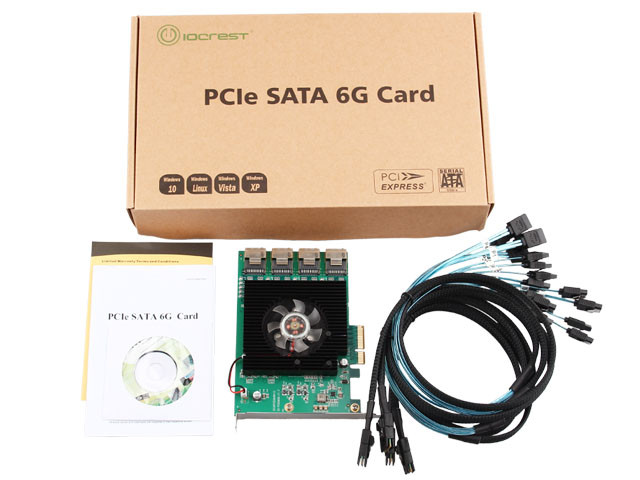

Package Contents
- 1 x SATA III (6Gbps) PCI-Express Controller Card
- 1 x User Manual
- 4 x Mini SAS to SATA Cable
- 1 x Driver CD
System Requirements
- Supports Windows XP/Vista/7/8/8.1/10 Server 2003/2008 R2, Linux 2.6.x and above
