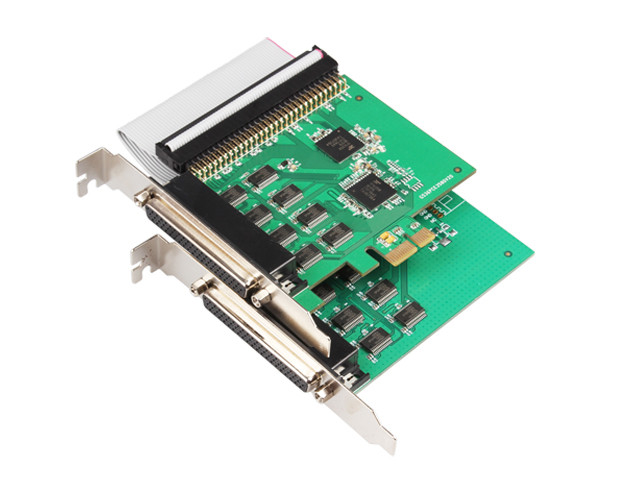

IO Crest PCIe to 16 Ports RS232 Serial Controller Card with Fan out Cable - IO-PCE358-16S
PCIe 2.0 Gen 1 compliant, x1 Link, dual simplex, 2.5Gbps in each direction, Expansion bus interface,Up to 25 Mbps serial data rate,16 multi-purpose inputs/outputs (MPIOs).
Features
- PCIe 2.0 Gen 1 compliant
- x1 Link, dual simplex, 2.5Gbps in each direction
- Expansion bus interface
- Up to 25 Mbps serial data rate
- 16 multi-purpose inputs/outputs (MPIOs)
- 16-bit general purpose timer/counter
- Sleep mode with wake-up Indicator
- Operating temperature range:-40â to 85â
- 16x Serial (16S) Model
- Supports 16 independent 9-pin RS232 Serial ports
- 256-byte TX and RX FIFOs
- Programmable TX and RX Trigger Levels
- TX/RX FIFO Level Counters
- Fractional baud rate generator
- Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis
- Automatic Xon/Xoff software flow control
- Multi-drop with Auto Address Detection
- Infrared (IrDA 1.1) data encoder/decoder
- Bundle with two 8-port (DB9) fan-out cable
Packing Information
- 1X16-port PCI-e Controller Card
- 1XUser Manual
- 1X30-pin IDE Cable
- 1XDriver CD
- 2XDB62 to DB9 Fan-out Cables (8 Serial Ports Each)
