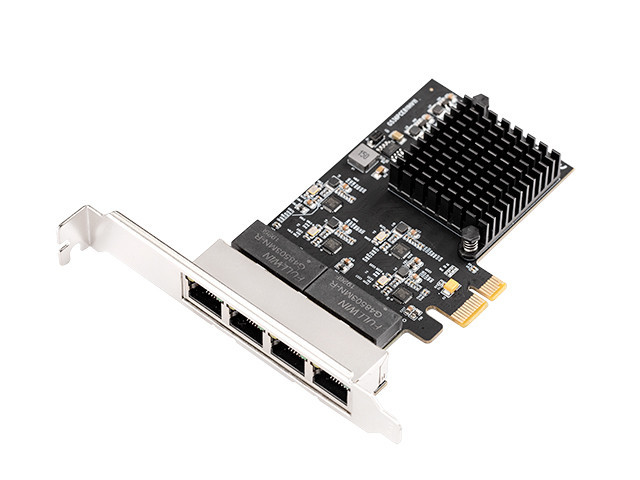

IO Crest PCIe to 4 Port Gigabit Ethernet Card - IO-PCE8111H-4GLAN
This PCI-Express RTL8111 Four Gigabit Ethernet controller card is a high performance 10/100/1000 BASE-T Ethernet LAN controller, supports the PCI Express 1.1 bus interface for host communications with power management, and is compliant with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space, and is perfectly to convert the PCI-Express interface into Four Gigabit Ethernet ports.
Specification
- Integrated 10/100/1000M transceiver
- Supports Giga Lite (500M) mode
- Auto-Negotiation with Next Page capability
- Supports PCI Express 1.1
- Supports pair swap/polarity/skew correction
- Crossover Detection & Auto-Correction
- Supports 1-Lane 2.5Gbps PCI Express Bus
- Supports hardware ECC (Error Correction Code) function
- Supports hardware CRC (Cyclic Redundancy Check) function
- Transmit/Receive on-chip buffer support
- Supports PCI MSI (Message Signaled Interrupt) and MSI-X
- Fully compliant with IEEE802.3, 802.3u and 802.3ab
- Supports IEEE 802.1P layer 2 Priority Encoding
- Supports 802.1Q VLAN tagging
- Supports IEEE 802.3az-2010(EEE)
- Supports Full Duplex flow control (IEEE.802.3x)
- Supports jumbo frame to 9K bytes
- Supports quad core Receive-Side Scaling(RSS)
- Supports Protocol Offload(ARP&NS)
- Supports Microsoft WPI (Wake Packet Indication)
- Supports ECMA-393 ProxZzzy Standard for sleeping hosts
System Requirement
- Windows 20000, ME, 98SE, Windows Server 2003/XP/Visit/ 2008/7 /8 /10 32-/64-bit,Linux, MAC OS 10.4 or above and DOS.
Package Content
- 1 x PCI-Express Four Gigabit Ethernet controller card
- 1 x User Manual
- 1 x Low Profile Bracket
