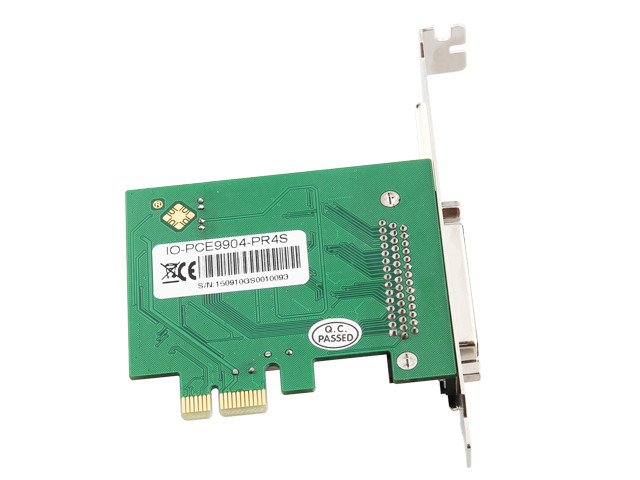

IO Crest PCIe to 4 Port RS232 Controller Card - IO-PCE9904-PR4S
PCI-Express Multi Function Peripheral controller with x1 Lane Interface.Fully compliant with PCI Express Base Specification, Revision 1.0a.Support PCI-Express Power Managemen
Features
- PCI-Express
- PCI-Express Multi Function Peripheral controller with x1 Lane Interface
- Fully compliant with PCI Express Base Specification, Revision 1.0a
- Support PCI-Express Power Management
NOTES: Please note some sections of the manual are only applicatable for the production that have such functions.
Serial Port
- Four 16c450/550/Extended 550 compatible UARTs
- Supports RS232 modes
- Bi-directional speeds from 50 bps to 16Mbps/Port
- Full Serial modem Control
- Supports Hardware, Software flow control
- 5,6,7,8 and 9-bit Serial format support
- Even,Odd,None,space & Mark parity supported
- Custom BAUD Rates supported with external clock or by programming internal PLL
- On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
- Supports remote wakeup and power management features
- Serial Port transceiver shutdown support
- Support Slow IrDA on all Serial Ports
Package Contents
- 1 x PCI Express Multi I/O Card
- 1 x Driver CD
- 1 x User manual
- 1 x Low Profile Bracke
- 1 x Fan Out Cable
Software Support
- DOS/Windows98/98e/ME/10
- Windows 32bit 2000/XP/2003 Server/Vista/7 & Windows 64bit XP/2003 Server/Vista/7/8
- Linux Kernel2.6.11& above
- MAC 10.4 & above
