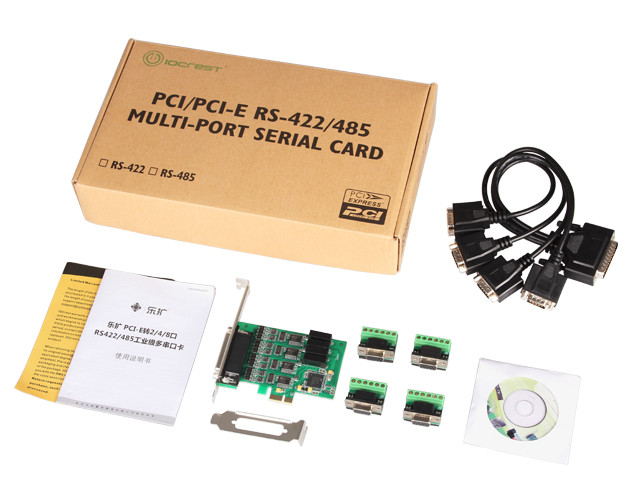

IO Crest PCIe to 4 Ports High Speed Serial RS-422/485 Card - IO-PCE354-PR4S
PCIe 2.0 Gen 1 compliant,x1 Link, dual simplex, 2.5Gbps in each direction,Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.RS485 signals: DATA+ (B), DATA- (A), GND,RS422 signal: T/R+, T/R-, RXD+, RXD-, GND,
Features
- PCIe 2.0 Gen 1 compliant
- x1 Link, dual simplex, 2.5Gbps in each direction
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- RS485 signals: DATA+ (B), DATA- (A), GND
- RS422 signal: T/R+, T/R-, RXD+, RXD-, GND
- 600W surge protection, 15 KV ESD protection for all serial ports
- Working mode: asynchronous workingãpoint-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
- Transmission distance: RS-485/422 port:1.2km (300bps-921600bps)
- Sleep mode with wake-up Indicator
- Transmission media: twisted-pair cable or shielded cable
- Direction control: Adopt the technology which automatically controls the data-flow directionãautomatically distinguish and control the data-transmission direction;
- UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
- Flow control none,hardware and xon/xoff
- Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
- Extended operating temperature range; -40 to 85â°C
Applications
- Next generation Point-of-Sale Systems
- Remote Access Servers
- Storage Network Management
- Factory Automation and Process Control
System Requirements
- Windows Server 2003, 2008, 2012
- Windows XP, Vista, 7, 8
- Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer
- PCI Express-enabled system with an available PCI Express slot
