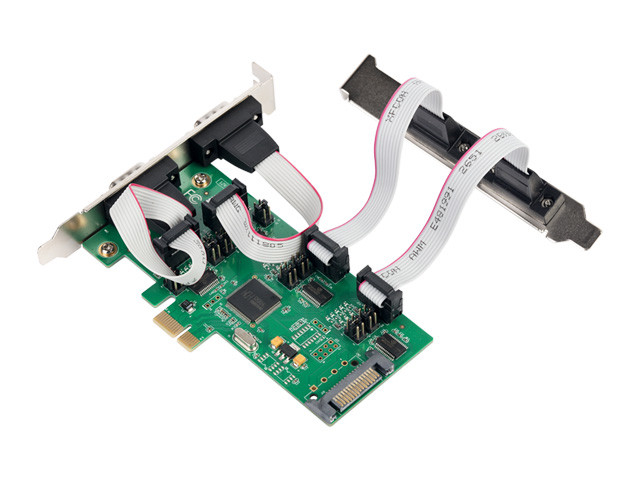

IO Crest PCIe to 4 Ports RS-232 Serial Controller Card - IO-PCE384P-4S
Compliant with PCI Express Base Specification 1.1.Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.Support 4 x UART serial ports.
Feature
-
Compliant with PCI Express Base Specification 1.1.
-
Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
-
Support 4 x UART serial ports
-
Built-in 16C550,16C552,16C554 compatible UART
-
256-bype deep transmit/receive FIFOs
-
Data transfer rate up to 230400bps
-
Optional RS-232 signal or power output to serial device
-
Provides 5VDC or 12VDC power output via pin 1
-
Provides 5VDC or 12VDC power output via pin 9
-
Plug-n-Play, I/O address and IRQ assigned by BIOS.
System Requirements
- Windows98/98e/ME
- Windows 32bit 2000/XP/2003 Server/Vista/7 & Windows 64bit XP/2003 Server/Vista/7/8/10
- Linux Kernel 2.4 & 2.6
One available PCI Express slot
Package Contents
- 1 x Powered RS-232 4-Port PCIe Card
- 1 x Driver CD
- 1 x User Manual
