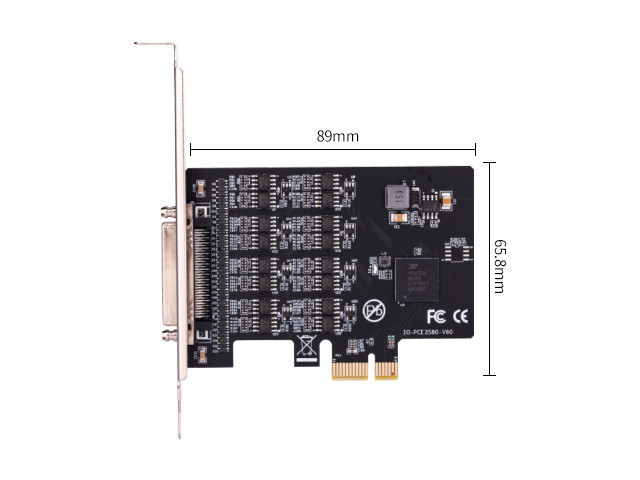

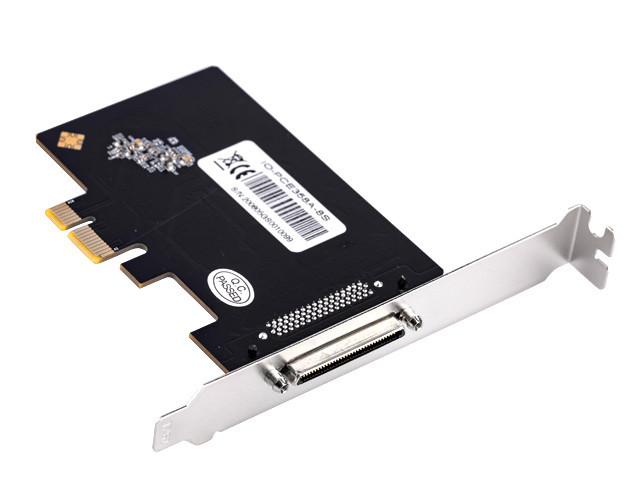

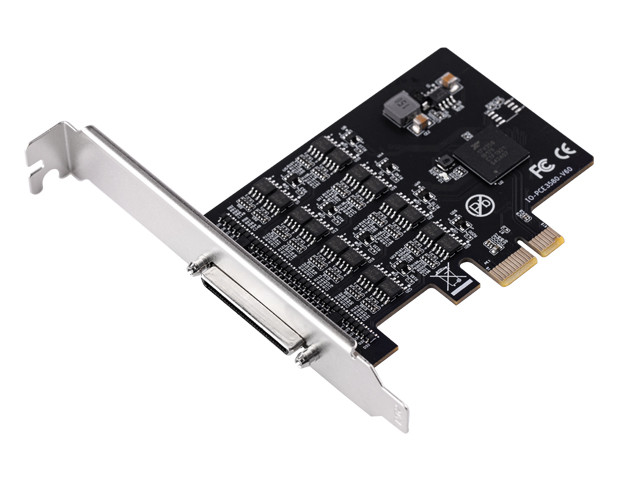

IO Crest PCIe to 8 Ports RS422/485 Serial Card - IO-PCE358A-8S
Features: PCIe 2.0 Gen1 compliant, x1 Link, dual simplex, 25Gbps in each direction, RS485 signals: DATA+(B), DATA-(A), GND, RS422signal: T/R+, T/R-, RXD+, RXD-, GND,
Features
- PCIe 2.0 Gen 1 compliant
- x1 Link, dual simplex, 25Gbps in each direction
- RS485 signals: DATA+ (B), DATA- (A), GND
- RS422 signal: T/R+, T/R-, RXD+, RXD-, GND
- Working mode: asynchronous workingãpoint-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
- Transmission distance: RS-485/422 port:1.2km (300bps-921600bps)
- Transmission media: twisted-pair cable or shielded cable
- Interface protection:TVS on each signal of RS42/485 port - for the protection of 500W Voltage Surge and +/-20kV ESD;
- Direction control: Adopt the technology which automatically controls the data-flow directionãautomatically distinguish and control the data-transmission direction;
- UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
- Flow control none,hardware and xon/xoff
- Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
- Extended operating temperature range; -40 to 85â°C
System Requirements
- Windows® Server 2003, 2008, 2012
- Windows® XP, Vista, 7, 8,8.1,10
- Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer
- A available PCI Express slot
Package Contents
- 1 x RS422/485 8-Port PCIe Card
- 1 x Driver CD
- 1 x User Manual
- 1 x Low Profile bracket
- 1 x VHDCI68 to 8x DB9 Cable
