IO Crest PCIe to Single Port Gigabit Ethernet Network Card - IO-PCE8111-2GLAN
Supports 10/100/1000Mbps data rate auto negotiation operation,Supports PCI Express 1.1, Supports pair swap/polarity/skew correction, Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
Features
- Standard Compliant
-PCI express base SPEC 2.0 and backward compatible with SEPC 1.1 & 1.0a
-PCI Power management SPEC 1.2 - Supports 10/100/1000Mbps data rate auto negotiation operation
- Supports PCI Express 1.1
- Supports pair swap/polarity/skew correction
- Crossover Detection & Auto-Correction
- Wake-on-LAN and remote wake-up support
- Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
- Supports EMAC-393 ECMA ProxZzzy Standard for sleeping hosts
- Supports Full Duplex flow control (IEEE 802.3x)
- Supports jumbo frame to 9K bytes
- Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports IEEE 802.1P Layer 2 Priority Encoding
- Supports IEEE 802.1Q VLAN tagging
- Supports IEEE 802.3az-2010 (EEE)
- Supports power down/link down power saving/PHY disable mode Built-in switching regulator
- Supports PCI MSI (Message Signaled Interrupt) and MSI-X
- Supports quad core Receive-Side Scaling (RSS)
- Supports Protocol Offload (ARP & NS)
- Supports Dual 1-Lane 2.5Gbps PCI Express Bus
- Supports hardware ECC (Error Correction Code) function
- Supports hardware CRC (Cyclic Redundancy Check) function
System Requirements
- Windows ME,98SE, 2000, XP, Vista, 7 and 8 32-/64-bit
- Windows Server 2003, 2008 and 2012 32 -/64-bit
- Linux, MAC OS and DOS
- PCI Express-enabled system with an available PCI Express slot

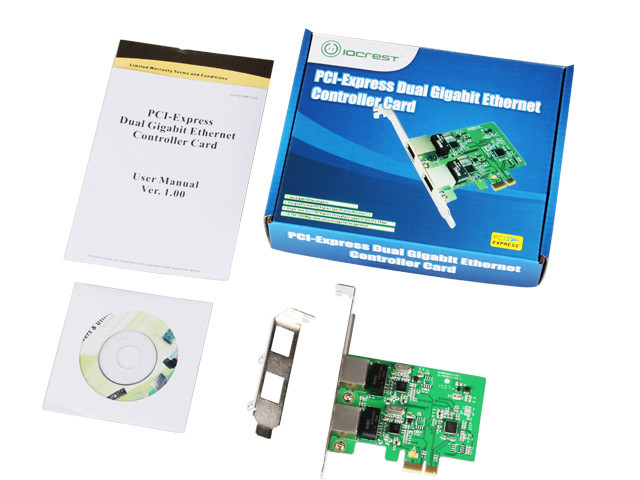

Package Contents
- PCI Express dual Gigabit Ethernet controller card x 1
- User Manual x 1
- Driver CD x 1
- Low-profile bracket x 1
