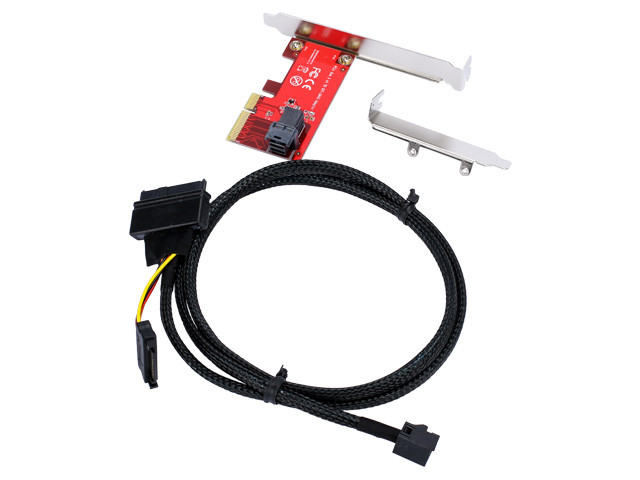

IO Crest PCIe to U.2 (SFF-8643) Gen 3 /4 -Lane Card - IO-PCE4X-U2
Buit-in SFF-8643 plug connector,D1 ON indicate the card adapter Ready, Allow 2.5" NVMe U.2 (SFF-8639) SSD to connect to system via SFF-8643 cable.
Features
- Buit-in SFF-8643 plug connector
- D1 ON indicate the card adapter Ready
- Allow 2.5" NVMe U.2 (SFF-8639) SSD to connect to system via SFF-8643 cable
Maximum throughput: - 32 Gbps when installed into a PCIe 3.0 4-lane slot
- 16 Gbps when installed into a PCIe 2.0 4-lane slot
- 8 Gbps when installed into a PCIe 1.0 4-lane slot
- No drivers required for this converter
- Industrial operating temperature: -40 °C to + 85 °C
- OS requirement for NVMe SSD: Windows 10, Windows 7 and Windows server 2008 R2
Specifications
- PCI Express Base Specification Rev 3.0
- SFF -8643 Min SAS HD Version 3.5
- PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
- NVM Express 1.0
- Compatible with PCIe 3.0, 2.0 or 1.0
- Operating Humidity: 5% - 95% (non condensing)
- RoHS compliant
Operating System Support
- Windows 7/8/8.1/10 64 bit
- UEFI 2.3.1 or later
