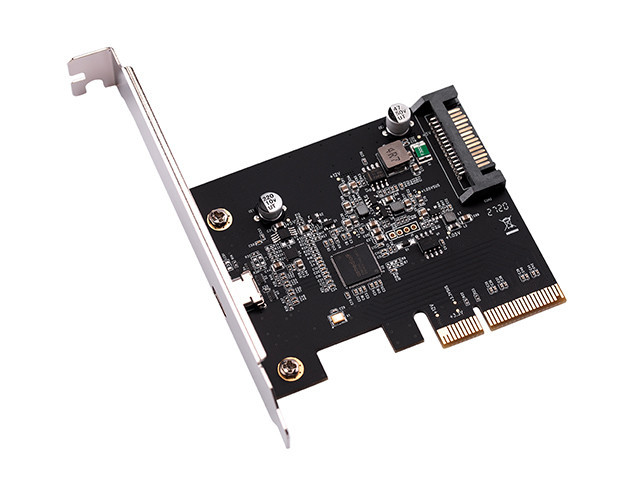

IO Crest PCIe to USB3.2 Type-C Host Controller - IO-PCE3242-1C
Support PCI Express Gen-III x4,Support PCI Express Base 3.1a Specification,Compliant with PCI Express Card Electromechanical 2.0 specification,Compliant with PCI Express Mini Card Electromechanical 1.2 specification
Features
- Support PCI Express Gen-III x4
- Support PCI Express Base 3.1a Specification
- Compliant with PCI Express Card Electromechanical 2.0 specification
- Compliant with PCI Express Mini Card Electromechanical 1.2 specification
- Compliant with PCI PCI Bus power Management interface specification Revision 1.2
- Compliant with PCI PCI Local Bus specification Revision 3.0
- Integrate Spread Spectrum Controller for PCI Express interface
- Not Support lane reversal
- Compliant with Universal Serial Bus 3.1 specification Revision 1.0
- Compliant with Universal Serial Bus specification Revision 2.0
- Compliant with USB Attached SCSI Protocol Revision 1.0
- Support Multiple INs function
- Support one ports of USB3.2
- Support USB3.2 and USB2.0 Link Power Management
- Support Control,Bulk,Stream,Interrupt,Isochronous transfer type
- Support USB3.2Gen2 x2
- Up to 20Gbps
- Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1
- 5V/3000mA power output for Type C port
- A type c female, an external USB3.2 interface and internal SATA power
- Power Input: 15-pin SATA CD-ROM Type Power Connector
- Support device remote wakeup function from USB keyboard or mouse
- Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
- Operation Temperature ï¼0 to 60°C (32 to 140°F)
- Storage Temperatureï¼-20 to 70°C (-4 to 158°F)
- Operation Humidityï¼5 to 95% RH
System Requirements
- Windows 8.x / 10 (X86/X64) (Windows in-box driver)
- Support Linux 2.6.31 or later (Linux OS already implemented USB3.2 driver)
Package Contents
- 1 × PCI Express to USB3.2 Type-CHost ControllerCard
- 1 × User Manual
- 1 × Driver CD
- 1 × Low Profile Bracket
