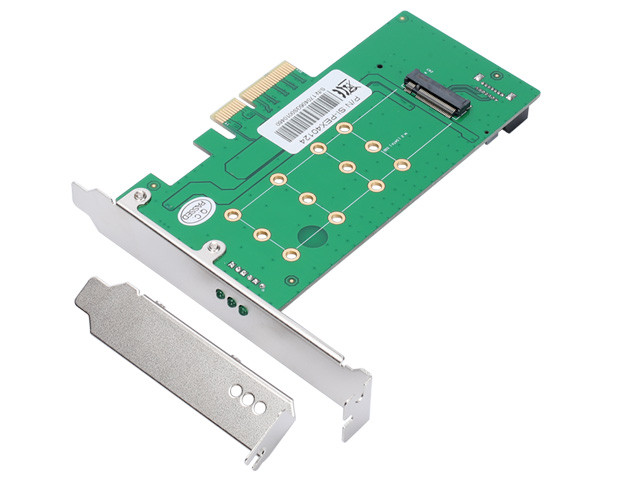

IO Crest PCIe x 4 to NGFF (PCIe) SSD+SATA to 2 x NGFF (SATA) Adapter Card - IO-PCE4X-2B1MI
Supports PCIe x4 or x8 or x16 slot,Compliant with PCI Express M.2 specification 1.0,Compliant with SATA III specification,Serial ATA Spec. Reversion 3.2,Supports data transfer up to 6.0Gb/s
Features
- Supports PCIe x4 or x8 or x16 slot
- Compliant with PCI Express M.2 specification 1.0
- Compliant with SATA III specification
- Serial ATA Spec. Reversion 3.2
- Supports data transfer up to 6.0Gb/s
- Connects SATA motherboard to NGFF B Key SSD
- Connects PCIE motherboard to NGFF M Key SSD
- Supports SATA-based NGFF SSD
- Supports 2230, 2242, 2260, 2280 size NGFF SSD
- Two NGFF M.2 B Key socket and one NGFF M.2 M Key socket available
- 5 screw holes 2230/2242/2260/2280 available to fix NGFF SSD card
- 5 screw holes available to fix PCB board
- Easy installation & no driver required

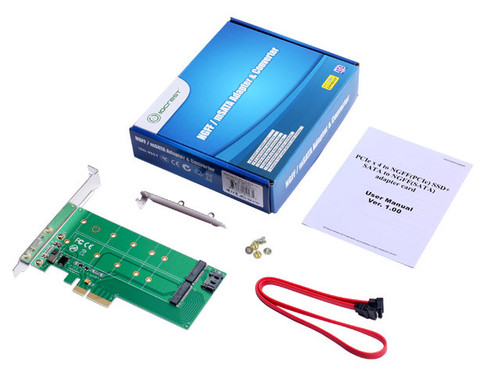

Package Contents
- 1 x PCIE x 4 to NGFF(PCIe) SSD+SATA to 2 x NGFF(SATA)adapter card
- 1 x User Manual
- 1 x Heat sink
- 2 x SATA Cable
- 3 x Screw Drive
- 6 x NGFF M.2 SSD mounting screws
System Requirements:
- Supports any OS, like Windows, Win CE and Linux etc
