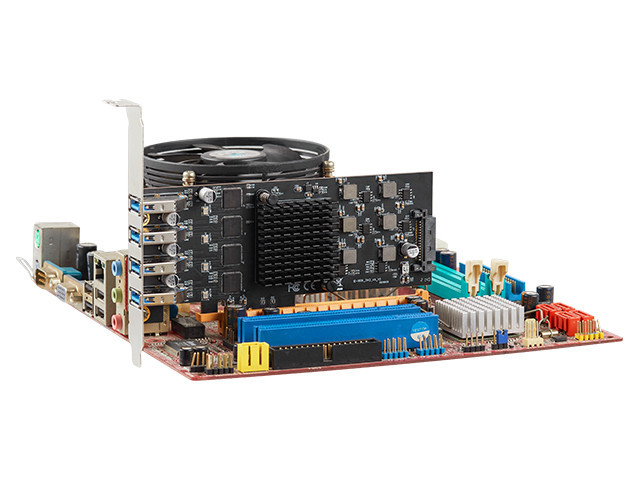

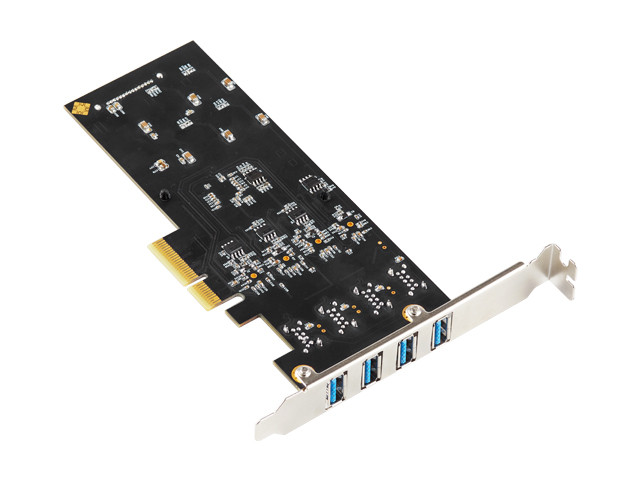

IO Crest PCIe x4 to 4 USB3.2 Gen1 Type-A Host Controller Card - IO-PCE3042A-4I
PCI-Express 2.0x4,Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 20Gb/sï¼Support USB Battery Charging Specification Revision 1.2.
Features
- PCI-Express 2.0x4
- Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 20Gb/s
- Support USB Battery Charging Specification Revision 1.2
- Complaint with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
- Supports the following speed data rates as follows:
- Low-speed (1.5Mbps) /Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
- Supports 4 downstream ports for all speeds
- Power Input: 15-pin SATA CD-ROM Type Power Connector
- Hot-swapping feature allows you to connect/disconnect devices without powering down the system
- 5V/900mA power output for Type A port
System Requirements
- Windows 8.x / 10 (X86/X64) (Windows in-box driver)
- Linux 2.6.31 or later (Linux OS already implemented USB3.0 driver)
- Mac OS
Package Contents
- 1 × PCIe to 4 USB3.2 Gen1 Type-A Host Controller Card
- 1 × User Manual
- 1 × Low Profile Bracket
