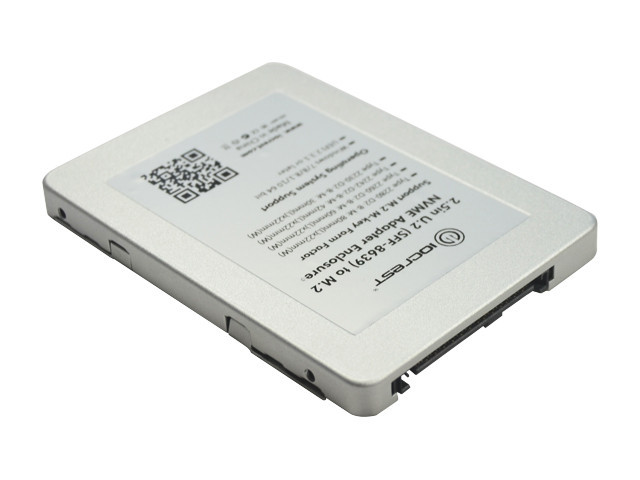

IO Crest U.2 (SFF-8639) to M.2 PCI-e I/F SSD Adapter - IO-U2TOM2-F2
Aluminum alloy shell material, good heat dissipation.Buit-in SFF-8639 plug connector ,Buit-in M.2 (NGFF) M-key receptacle connector,D1 ON indicate M.2/PCI-e 4 Lanes device power OK, D2 indicate active status.
Features
- Aluminum alloy shell material, good heat dissipation.
- Buit-in SFF-8639 plug connector
- Buit-in M.2 (NGFF) M-key receptacle connector
- D1 ON indicate M.2/PCI-e 4 Lanes device power OK
- D2 indicate active status
- Supports CLKREQ functions to implement PCIe port circuit power on/off
Specifications
- PCI Express Base Specification Rev 3.0
- SFF 8639 Enterprise SSD Form Factor Version 1.0a
- PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
- PCI Express M.2 Spec. Revision 0.7, Version 1.0
- NVM Express 1.2a
- PWM synchronous buck converter Power IC
- 3.3V, 5A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- ESD CDM (Charged Device Model) /500V
Support M.2 M-key Form Factor - Type B-M:8022/6022/4222/3022
Operating System Support
- Windows 7/8/8.1/10 64 bit
- UEFI 2.3.1 or later
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +44 330 043 2524 | You can also use the quote request page
