IO Crest USB 2.0 to 4 Port Serial RS232 Adapter - IO-U24232C-4S
Features
- Standards: conforming to USBV1.0, 1.1 and 2.0 and EIA RS-232
- USB 2.0 High Speed (480 Mbits/Second) and Full Speed (12Mbits/Second)
- USB signals: VCC, DATA+, DATA-, GND
- RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI
- Direction control: adoption of automatic data stream control for automatic recognition and control of data transmission direction
- Supports serial transmission rate up to 230400bps
- UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity
- Transmission distance: 5 meters for RS-232 and less than 5 meters for USB
- Interface protection: ±15KV ESD protection and surging
- Interface forms: B interface female connector and DB9 male connector for USB.
- LED indicators for adapter data activity
- Supports automatic handshake mode
- Working environment: -40 to 85â , relative humidity 5% to 95%
- Supports bus powered, self powered and high power bus powered USB configurations
- Optional DC jack(DC 5V) or terminal block power connections (9-36 DC )
Applications
- POS Printer Terminal
- Networking System
- PLC, Instrumentation device
- Data Acquisition, I/O Control Module
System Requirements
- Windows 2000, Server 2003, Server 2008
- Windows XP and XP 64bit
- Windows XP Embedded
- Windows Vista and Vista 64bit
- Windows 7/8/8.1/10 32 end 64bit
- Windows CE 4.2, 5.0, 5.2 and 6.0
- Linux (2.4 or later) and Linux x86_64
- USB1.1 or higher port

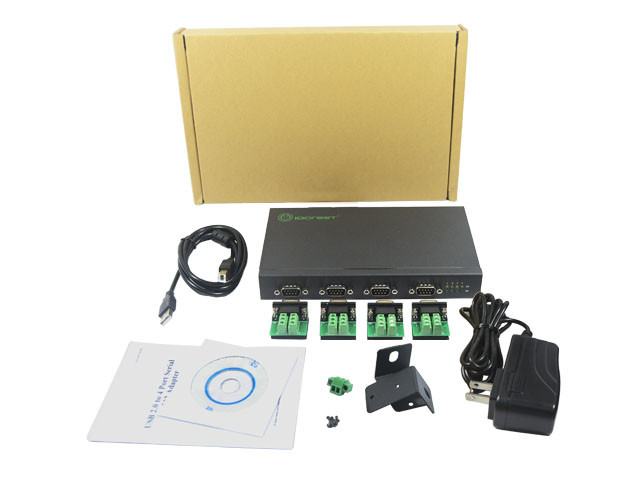

Accessories
- 1*USB2.0 to 4 Port Serial Adapter
- 1*Driver CD
- 1*USB Type A to B Cable
- 1*Instruction Manual
- 1*Power Adapter
