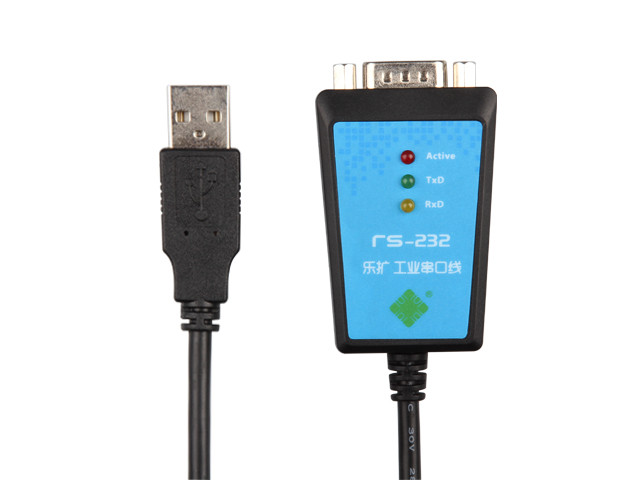

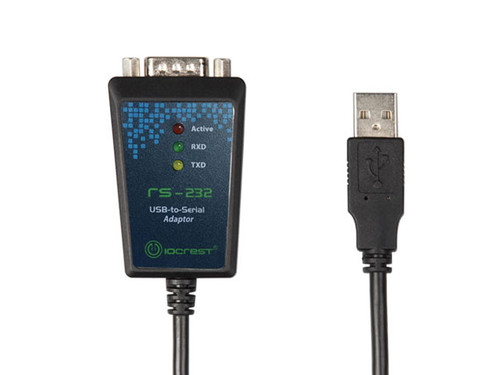

IO Crest USB 2.0 to DB9 RS232 Serial Adapter Cable with Magnetic Ring, LED - IO-USB2310-02
Conforming to USB V1.0, 1.1 and 2.0,USB signals: VCC, DATA+, DATA-, GND and FG,RS-232 signals: CD RXD TXD DTR GND DSR RTS CTS RI Single chip USB to asynchronous serial data transfer interface.
Features
- Standards: conforming to USB V1.0, 1.1 and 2.0
- USB signals: VCC, DATA+, DATA-, GND and FG
- RS-232 signals: CD RXD TXD DTR GND DSR RTS CTS RI
- Single chip USB to asynchronous serial data transfer interface
- Support Bits per second Data transfer rates from 300 baud to 961200baud (RS232 )
- UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
- Flow control none,hardware and xon/xoff
- Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
- UART signal inversion option
- USB 2.0 Full Speed capable
- Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
- Extended operating temperature range; -40 to 85â°C
Applications
- USB to UART Cable
- POS Printer Terminal
- Networking System
- Industrial and Power Meter
- USB Bar Code Reader
- USB Digital Camera Interface
- USB Wireless/Wired Modem
Systerm requirement
- Windows XP,Vista,7,8 ,10,32,64-bit
- Windows XP Embedded
- Windows CE 4.2, 5.0 and 6.0
- Mac OS-X
- Linux 3.2 and greater
- Android
Package details
- 1×USB 2.0 to Serial Converter
- 1×User Manual
- 1×CD Driver
