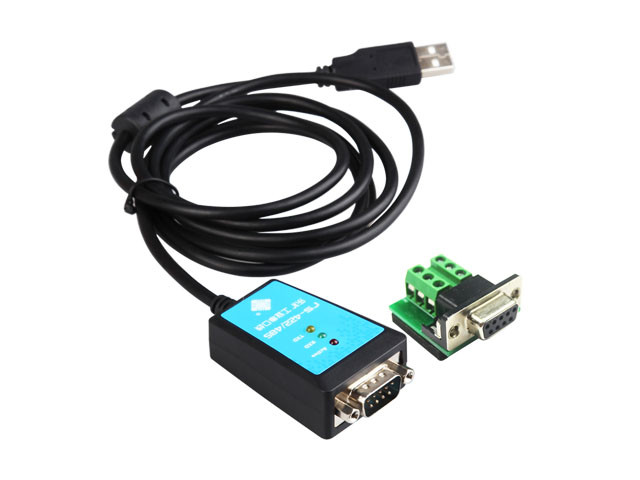

IO Crest USB 2.0 to RS422/485 Serial Cable with Magnetic Ring - IO-USB4285-02
Features
- Standards: conforming to USBV1.0, 1.1 and 2.0
- RS-485,RS-422 TIA/EIA Standard
- USB signals: VCC, DATA+, DATA-, GND and FG
- RS-422 Signal: T/R+,T/R-,RXT+,RXD-,GND; RS-485 signals: T/R+,T/R-.GND
- Working mode: asynchronous workingãpoint-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
- Single chip USB to asynchronous serial data transfer interface
- Direction control: Adopt the technology which automatically controls the data-flow directionãautomatically distinguish and control the data-transmission direction;
- Support Bits per second Data transfer rates from 300 baud to 921600baud;
- UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
- Flow control none,hardware and xon/xoff
- Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
- Transmission distance: RS-485/422 port:1.2km (300bps-921600bps).USB port : No more han 5 meters
- Interface protection: surge protection and ±15KV ESD protection
- Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
- Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
- Transmission media: twisted-pair cable or shielded cable;
- Extended operating temperature range; -40 to 85â°C
Applications
- USB to UART Cable
- POS Printer Terminal
- Networking System
- Industrial and Power Meter
- USB Bar Code Reader
- USB Digital Camera Interface
- USB Wireless/Wired Modem
Package details
- 1×USB 2.0 to Serial Converter
- 1×User Manual
- 1×CD Driver
- 1x Adapter
