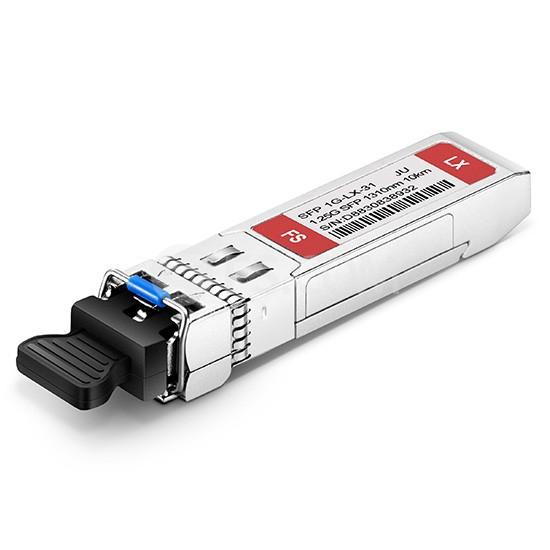

Juniper SFP 1000BASE-LX
Part Number
740-011614
Speed
Gigabit Ethernet
Breakout Capable
No
Transceiver Type
SFP
Product Type
Optical Transceiver
Connector
Duplex LC
Monitoring Available
Yes
Digital Optical Monitoring
Yes
Standard: 1000BASE-LX
Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4)
1000BASE-LX
MSA compliance (SFF, for e.g. SFF-8665)
INF-8074i
Optic Type (Commercial Vs Service Provider Grade)
Commercial
Digital Diagnostic Monitoring
Tx Power
Rx Power
Tx Bias Current
Case Temperature
Power Supply Voltage
NEBs (Yes or No)
Yes
Signaling rate, each lane
1.25 Gbps
Transmitter wavelengths (range)
1270 nm to 1355 nm
Receive lane wavelengths (range)
1270 nm to 1355 nm
Transmitter output power, each lane (minimum)
-9.5 dBm
Transmitter output power, each lane (maximum)
-3 dBm
Receiver input power, each lane (minimum)
-19 dBm
Receiver input power, each lane (maximum)
-3 dBm
Stressed receiver sensitivity (OMA) each lane (maximum)
-14.4 dBm
Cable type
SMF
MMF
MMF
Core size/cladding
-
62.5 µm (Refer the note below)
50 µm (Refer the note below)
Note: According to IEEE Std 802.3-2018, Clause 38.11.14. An offset-launch mode-conditioning patch cord is required for MMF operation of 1000BASE-LX.
o If the cabling is 62.5m MMF then the MMF used in the construction of the mode conditioner should be of type 62.5m MMF.
o If the cabling is 50m MMF, then the MMF used in the construction of the mode conditioner should be of type 50m MMF.
Effective modal bandwidth
-
500 MHz x km
500 MHz x km
Distance
10 km
550 m
550 m
Maximum Power consumption (W)
1 W
Operating Temperature (range)
–5° C to 70° C
Storage temperature
–40° C to 85° C
Typical Weight & Dimensions
Weight: 0.15 kg
Height: 8.55 mm
Width: 13.55 mm
Depth: 57.5 mm
