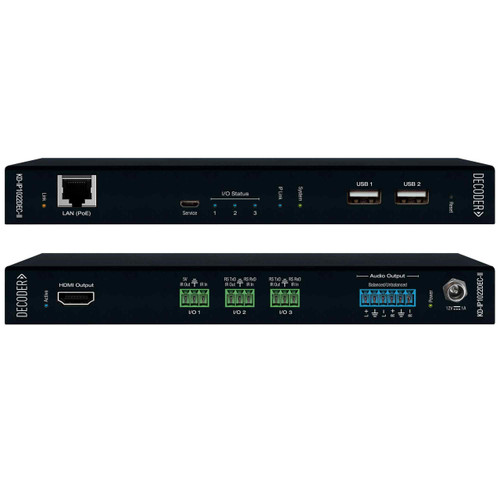

Key Digital 1080p AV over IP System Receiver -KD-IP1080Rx
-
Flexible system that fits your exact system needs for source and display quantities
-
Low bandwidth AV over IP system as compared to 4K systems
-
PoE power adds ease of installation
-
Key Digital iOS App ready, with open API when integrated with KD-CX800 control interface
Introduction
Key Digital’s 1080p AV over IP system, consisting of KD-IP1080Tx & KD-IP1080Rx, may be scaled to fit any installation need. Add a KD-IP1080Tx per video source or KD-IP1080Rx per video display and use a verified network switch as the central point of this HDMI AV routing and distribution system.
Features
-
H.264 Compression: Ideal standard for large video distribution applications
-
Data Stream Bandwidth: < 15Mbps
-
Low-bandwidth System: Supports managed 100BaseT or Gigabit network switches
-
Custom System: Add Tx and Rx extenders to an existing system to expand HDMI over IP up to 1024 Tx units and unlimited amount of Rx units
-
Power Over Ethernet: Carry power to Tx and Rx units with a Power Over Ethernet enabled Smart Managed Switch
-
Signal Extension: Up to 400 ft. @ 1080p@60 (2.25Gbps) using CAT5e/6 UTP/ STP cable
-
Connectivity: Can be connected through a network IP switch or point-to-point
-
Alternative Extension Methods: Enabled by low-bandwidth data streaming technology. Wifi Extender up to 100 ft, IP over Coaxial: Up to 1000 ft
-
Resolution Support: Supports up to 1080p@60 (2.25Gbps) and compatible with DVI1.0/HDMI/HDCP1.x
-
Audio Format: Supports 2ch PCM at 44.1/48kHz
-
Control System Support: Key Digital app ready. Key Digital Management Software Pro (KDMS Pro) ready, Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
-
Source/Display Control: Integrate with KD-CX800 to add 3 IR, RS-232 or Trigger ports
-
Key Digital App Ready: Can be controlled over TCP/IP via Key Digital App
-
Control App Stabilization: One KD-CX800 or KD-MC1000 control gateway required for control by professional control system.
Additional Features
-
Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
-
EDID: EDID libraries readily available to provide the best setup per source
-
Deep Color Support: Up to 12 bits/color
-
TMDS re-clocking: Support for long HDMI runs using Key Digital HDMI cables
-
Licensing: Fully licensed and compatible with all HDMI and HDCP technologies up to HDMI 1.4 and HDCP 1.4
