Key Digital 2 Output HDMI Splitter Distribution Amplifier With 4K 18G Resolution Signal Support -KD-DA1x2DC
- Feeds video source to 2 HDMI displays
- 4K to 1080p conversion option for easy integration with legacy displays
- Supports 4K HDMI signals up to 18Gbps with HDR, HDCP 2.2, and surround audio up to Dolby® 7.1, Atmos / DTS-HD
- De-embeds audio for ease of integration with audio systems and soundbars
Introduction

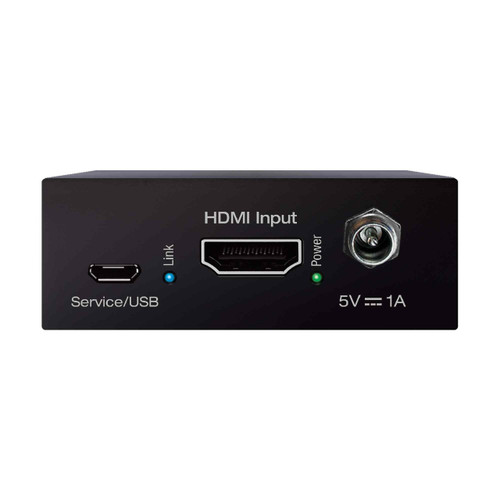

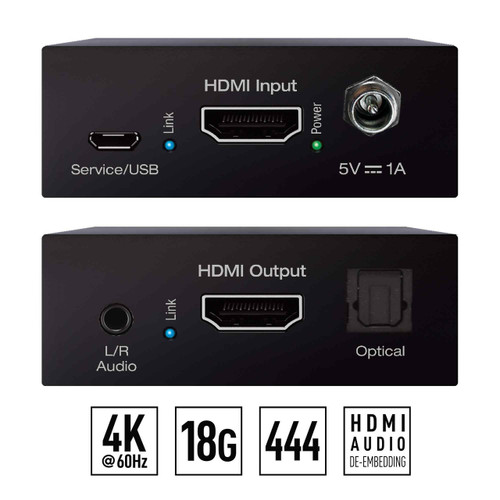

KD-DA1x2DC is an HDMI splitter/distribution amplifier with 4K 18G resolution signal support and a 4K to 1080p resolution down conversion option. This enables a single HDMI video source to be displayed on multiple video displays, regardless of 4K or 1080p resolution support.
The KD-DA1x2DC stands out for its professional integration tools and versatile audio de-embed ports. It also features intelligent EDID management.
These features make it a reliable and cost-effective choice for a wide range of professional installations.
High-Quality Audio-Video Integration
The KD-DA1x2DC is engineered to deliver superior quality, performance, and reliability, all at an affordable price.
We specifically designed it for easy integration into professional audio-video installations. It's suitable for everything from digital signage to surveillance monitoring applications and beyond.
Versatile Audio De-embed Ports
The KD-DA1x2DC HDMI audio splitter includes L/R analog and optical digital audio de-embed ports.
This allows for integration with amplifiers, distributed audio systems, or sound bars. A flexible and comprehensive audio solution for any setup!
Support for Ultra high-def Video
The KD-DA1x2DC supports up to 4K/UHD video resolutions with 4:4:4 chroma sub-sampling, 12-bit deep color, and HDR support.
Intelligent EDID Handshaking
To address common HDMI handshaking and integration challenges, the KD-DA1x2DC features EDID handshaking and Forced Hot Plug Detection professional tools for a smooth and hassle-free integration experience.
Features
-
HDMI Signal Distribution: 1 HDMI source to 2 HDMI outputs/displays
-
Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
-
Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
-
4K to 1080p Down Convert: When enabled, resolution conversion is applied to individual outputs(s) based on EDID from the connected display
-
Audio De-embedding: Audio of the connected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors
-
Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
-
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from output/display 1
-
Surround Audio Support: DTS-HD Master Audio, DTS:X, Dolby TrueHD, Dolby Atmos
Additional Features
-
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
-
HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
-
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
-
CEC Disconnect: Prevents unwanted control of source
