Key Digital 4 Input Slim Series HDMI Auto Switcher, A Slim-Series HDMI Switcher -KD-S4x1X-2
-
Connect 4 sources into a single HDMI input port on display or projector
-
Supports 4K HDMI signals up to 18Gbps with HDR, HDCP 2.2, and surround audio up to Dolby 7.1, Atmos / DTS-HD
-
De-embeds audio for ease of integration with audio systems and soundbars
-
Auto switching or control by push button, the included IR remote or RS-232
Introduction

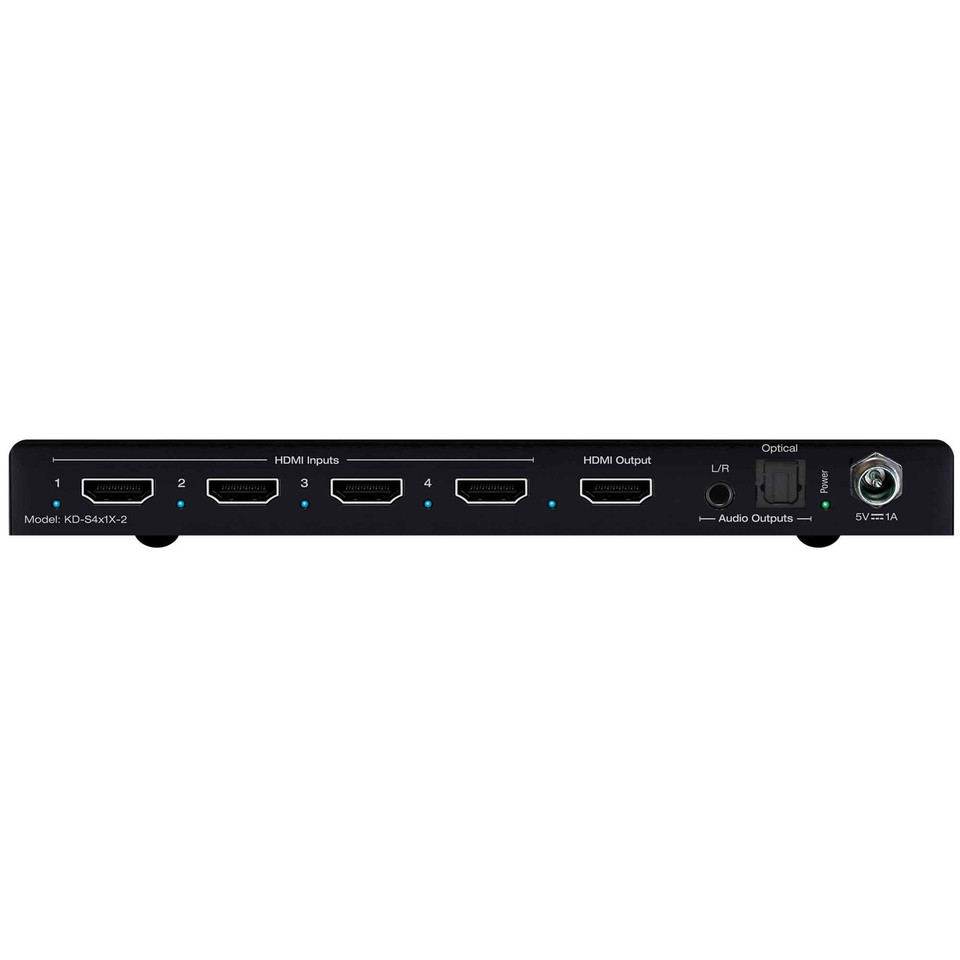

The Key Digital KD-S4x1X-2 is a slim-series HDMI switcher offering professional-level quality, performance, and reliability at a cost-effective price point.
Professional AV Installations
Engineered for professional audio-video installations with HDR, HDCP 2.2, and 4K, the KD-S4x1X-2 is ideal for home theaters, gaming spaces, and presentation setups, connecting many video sources to one display, making setup easier with less cabling required.
Additionally, it provides L/R analog and Optical audio de-embed ports to send audio of the selected source to amplifiers, DSPs, or soundbars for enhanced audio quality.
Auto-Switching Convenience
The 4 port HDMI switch offers the convenience of auto-switching to automatically select newly connected or powered sources so users don't have to hassle with manually switching inputs when adding or removing video sources.
Comprehensive Video Support
This HDMI switcher boasts comprehensive video support, covering all SD, HD, VESA, and Ultra HD/4K video standards.
It includes HDR header information in a variety of 4K EDID handshakes, enhancing the visual experience with High Dynamic Range content.
Whether users are working with standard or 4K video sources, the KD-S4x1X-2 ensures compatibility and stunning visuals.
User-Friendly Control
The KD-S4x1X-2 offers flexible control options with a push-button, IR remote, and RS-232 via the included dongle. Additionally, status-monitoring LEDs provide visual feedback, keeping users informed about the active source.
Features
-
HDMI Switching: 4 HDMI sources to 1 HDMI output/display
-
Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps)
-
Audio De-embedding: Audio of the selected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors
-
Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled -
-
Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
-
Surround Audio Support: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos
-
CEC Pass-thru: From connected display to selected HDMI source
-
Control: Front panel button, optical IR, RS-232 via Micro USB Port and included adapter cable
Additional Features
-
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
-
HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
-
Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p.
-
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
-
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display
-
Control System Support: Compass Control Pro ready. Fully controllable by all IR, and RS-232 supported control systems via open API.
