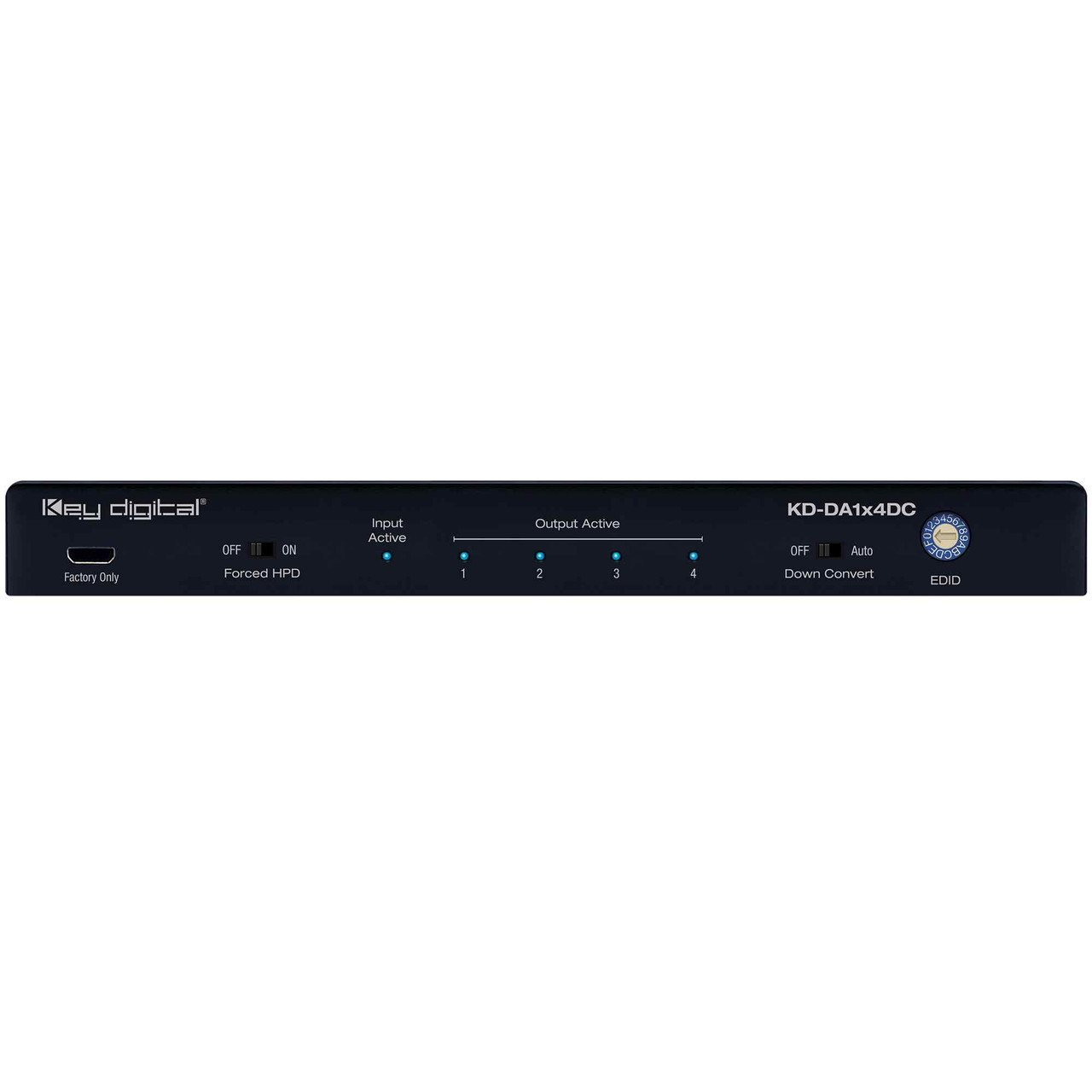

Key Digital 4K 18G 4 Output HDMI Splitter Distribution Amp with Audio De-Embed, 4K to 1080p Down-Convert -KD-DA1x4DC
- Feeds 1 video source to 4 HDMI displays
- 4K to 1080p down-conversion for integration with legacy displays
- 4K HDMI signals up to 18Gbps with HDR, HDCP 2.2, and surround audio up to Dolby 7.1, Atmos / DTS-HD
- De-embeds audio for ease of integration with audio systems and soundbars
Introduction
KD-DA1x4DC is a 4K 18G HDMI Distribution Amplifier with 4K to 1080p resolution down conversion option to enable a single HDMI video source to be displayed on multiple video displays, regardless of 4K or 1080p resolution support. KD-DA1x4DC is engineered to offer the best quality, performance, and reliability at a cost-effective price point and has been designed for professional audio video installations in digital signage, surveillance monitoring applications, and more. KD-DA1x4DC features L/R analog and optical digital audio de-embed ports, enabling ease of integration into amplifiers, distributed audio systems, or sound bars. KD-DA1x4DC supports all video resolutions up to 4K/UHD, 4:4:4 chroma sub-sampling, 12bit deep color, and HDR. EDID handshaking and Forced Hot Plug Detection professional tools help overcome common HDMI handshaking and integration problems for ease of installation in any environment.
Features
- HDMI Signal Distribution: 1 HDMI source to 4 HDMI outputs/displays
- Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
- 4K to 1080p Down Convert: When enabled, resolution conversion is applied to individual outputs(s) based on EDID from the connected display
- Audio De-embedding: Audio of the connected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors
- Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
- EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from output/display 1
- Surround Audio Support: DTS-HD Master Audio, DTS:X, Dolby TrueHD, Dolby Atmos
Additional Features
- HDCP Licensing: Fully licensed and compatible with HDCP 2.2
- HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- CEC Disconnect: Prevents unwanted control of source
