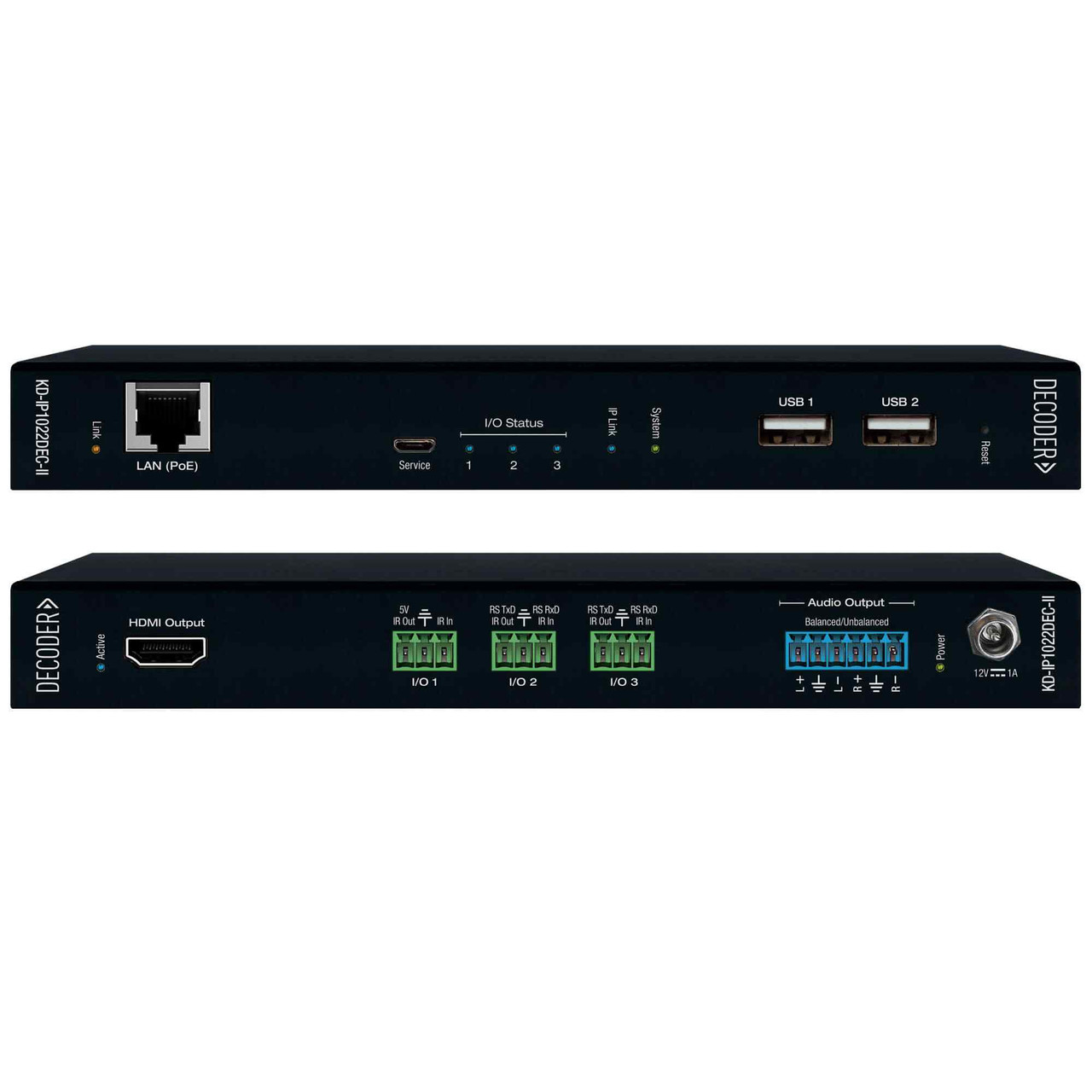

Key Digital 4K AV over IP System Decoder with PoE, Audio De-Embedding and Pre-Amp, Mosaic Video Walls -KD-IP1022DEC-II
-
KD-IP1022-II series products are fully loaded, with independent AV routing and mosaic video wall processing, in addition to all the connectivity needed for custom 4K AV over IP applications
-
Flexible system that fits your exact system needs for source and display quantities
-
Low latency, PoE powered, high quality AV over IP system that works on a 1G network
-
Key Digital iOS App ready, with AV signal routing, video wall management, IR control of common sources & displays, and Image preview. Open API over TCP/IP.
Key Digital’s 4K AV over IP system may be scaled to fit any installation need. Add an Encoder per video source or Decoder per video display and use a verified network switch as the central point of this HDMI AV routing and distribution system. The Key Digital 4K AV over IP system is completely integrated, with Encoder and Decoder product options including video wall, mosaic video wall, independent audio and video routing, control, audio pre-amp, app-ready user interface capabilities, and more.
Features
-
AV Over IP: Utilizes a managed gigabit network switch to enable HDMI video distribution, matrix switching, and signal extension
-
Video Wall Processing: Encoder + Decoder systems create video walls with up to 16x16, 256 total maximum displays
-
Mosaic Video Wall: Create decorative video walls using displays of varying sizes and positioning. Begin from templates of popular layouts or easily create fully custom layouts with graphical assistance using KDMS Pro software instead of terminal coding
-
Control: 3 multi-function ports may be used as Compass Control Pro master controller, by IP control systems via KeyCode open API, to extend control signals, or as a third-party control interface,
-
Independent Switching: Video, Audio, and USB switching all independently routable routed for multi-layer systems
-
Key Digital App Ready: Network scan & detect populates pre-built GUI including optional image preview, finger drag video wall management, source and display control of popular devices via R, RS-232, and CEC
- KDMS Pro Ready: PC software for unit & system setup and control UI with clean End-User mode option including optional image preview, mouse-drag video wall management, source and display control of popular devices via IR, RS-232, CEC, and PJ Link
- CEC HDMI Display Control: Power on and off compatible displays without any additional cabling
-
HDMI Pass-through: Tx unit HDMI Pass-through to connect local monitor, HDMI Audio systems
-
Audio De-Embedding: Audio from the HDMI input is de-embedded through analog phoenix terminal to enable external audio connectivity with audio systems and amplifiers
-
Audio Pre-Amp: Volume, muting, 3-band EQ, and lip-sync delay controllable on audio de-embed port
-
USB 2.0: Routing follows AV source / display selection with maximum of 4 USB keyboard or mouse devices simultaneously routed to a single host computer / encoder. 1.5Mbps maximum bandwidth. Webcams not supported. For non-keyboard & mouse device inquires, please contact Technical Support before purchase
-
4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit (10.2Gbps max bandwidth)
-
4K Down-scale: Incoming 4K resolution can be down-converted to 1080p or 720p at each decoder, enabling monitors to display content at optimal resolution at all times
-
Signal Extension: Up to 330 ft. / 100 m @ 4K 24/25/30(4:4:4) out of network switch or point-to-point
-
Power over Ethernet: Does not require power supply when integrated with compatible PoE network switch
-
Redundant Power Connection: Added reliability for non-PoE integration
-
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
-
Data Stream Bandwidth: ≤ 850Mbps at 4K, ≤ 250Mbps at 1080K, ≤ 125Mbps at 720p / 1080i
-
Latency: <40ms at 4K. Less at lower resolution
-
Installation: Use KD-SMS16 to cleanly install up to twelve ENC/DEC units in rack
-
RS-232/TCP-IP Control Mode: Provides control of unit as well as connectivity status
-
Surround Audio: Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio
-
Control System Support: Controllable by all IR, RS-232 & TCP/IP supported control systems via open API
Additional Features
- Backward Compatible: with previous generation KD-IP1022ENC and KD-IP1022DEC systems
- HDMI and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:4:4
- EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected to Decoder
- Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices
- Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control
- HDR (High Dynamic Range): HDR is achieved with AppleTV source at 4K/30 [4:2:2] 12bit deep color, enabling more life-like images through a greater range of luminance levels
- IR Sensor: Sensor powering via +5V IR In port collects line-of-sight IR from remote(s) without external IR connecting block
- Up/Down IR: Two channels of IR enable control to/from devices connected to Encoder and Decoder units
- RS-232: Bi-Directional control to/from Encoder and Decoder unit on Phoenix connector
