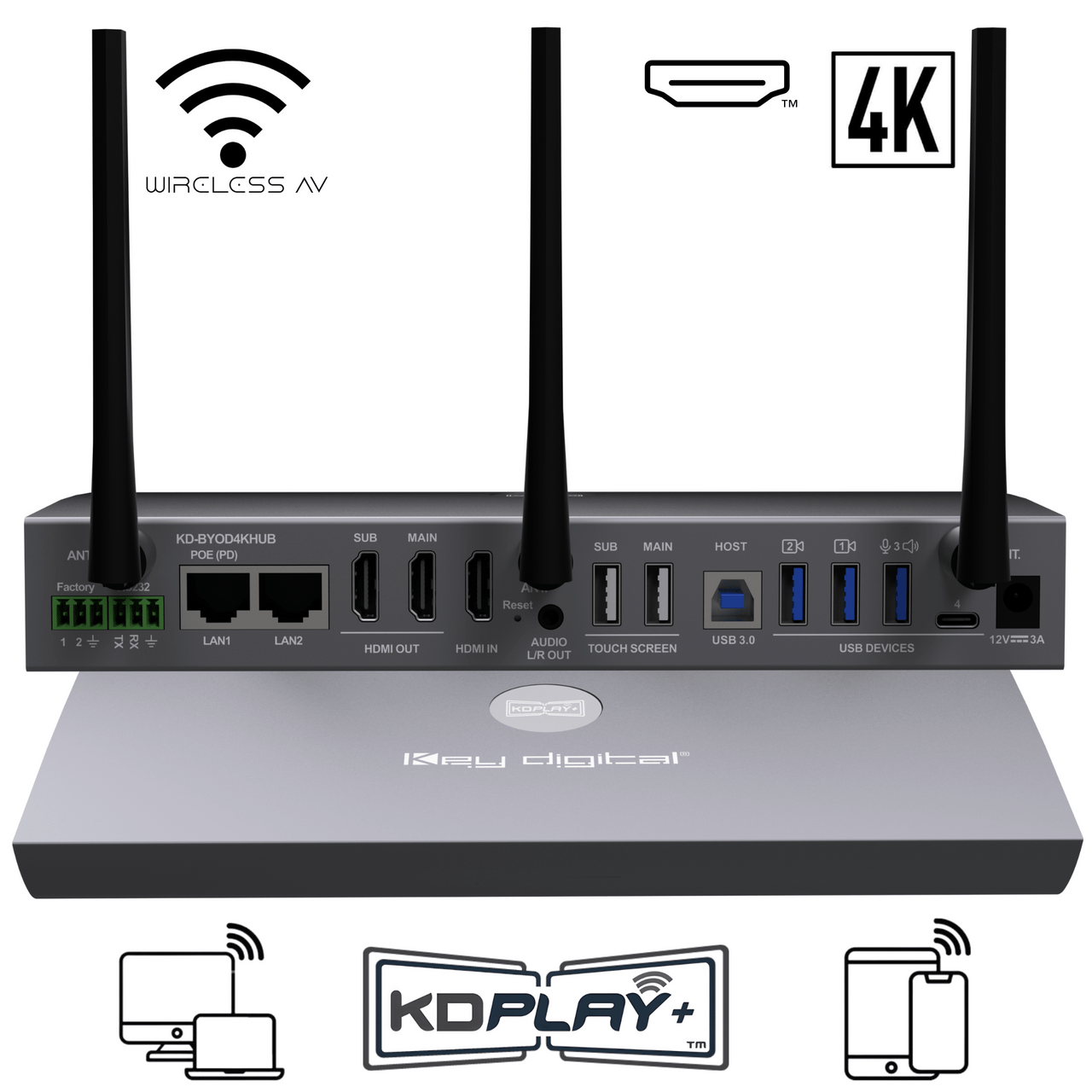

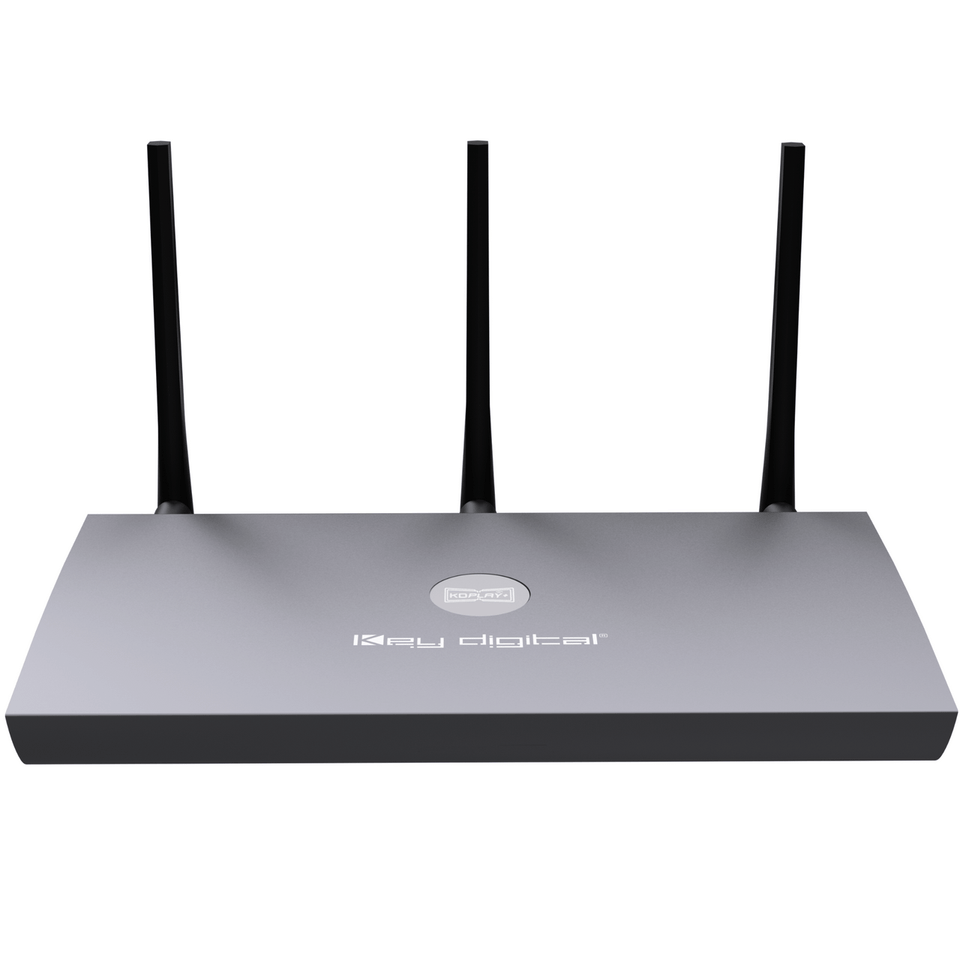

Key Digital BYOD & BYOM Wireless Presentation & Conferencing Gateway -KD-BYOD4KHUB

KD-BYOD4KHub is a wireless presentation & conferencing gateway compatible with Windows, Mac, iOS, Android, and Chrome devices. Users wirelessly receive USB camera, mic, and speaker devices while wirelessly casting to the base unit for display on the monitor or projector in the room in a stunning 4K resolution at 30 frames per second for a superior video experience.

This system places a strong emphasis on user experience, ensuring smooth connectivity and ease of operation.

The device is an ideal solution for environments where users no longer wish to manage various adapters or dongles and want to present and join conferences from devices without any wires.

Wireless + Wired Presentation & Conferencing

KD-BYOD4KHUB presentation & conferencing gateway is a wireless solution for conference and presentation spaces enabling users to bring their own device, present to their display, and receive the USB camera, mic, and speaker in the room to collaborate with local and remote video conference participants.

Multi-Format & Multi-Presenter Support

Users with Windows, Mac, Chrome, iOS, or Android devices connect to KD-BYOD4KHub via the WiFi network to present with up to 5 presenters sharing their ideas simultaneously on the local displays or projectors, as well as a USB capture feature to mirror the room’s display in your video conferencing software.

User-Friendly Casting

KD-BYOD4KHub includes KD-BYODFD auto-launching flash drive for plug & play casting. Additionally, users may follow the on-screen instructions to download the KDPlay app onto their device. KD-BYOD4KHub also boasts native support of Airplay from iOS devices, Chromecast from Chromebooks, and Miracast from Windows and Android OS.

Installer Friendly Connectivity

Two HDMI outputs and an HDMI input complete KD-BYOD4KHub’s dynamic offering, delivering the perfect balance of quality and flexibility.

Dual network ports enable access via Employee and Guest network for easy internet access.

Powerful Tools Built-In

With 4K output resolution, auto sizing multi-presenter layouts, moderator management, annotation, and touchscreen/mouse control, KD-BYOD4KHub enables modern workforces to work more effectively than even before.

KD-BYOD4KHub’s display CEC and RS-232 room display management feature, customizable home screen, and digital signage mode can automate your displays, transforming them into branding canvases when not in use.

Features

• Wireless Presentation & Conferencing Gateway: Connect via WiFi to wirelessly present and receive USB camera and audio.
• Bring Your Own Device: Cast from Windows and Mac computers using KDPlay software. Cast from iOS devices with AirPlay. Cast from Chrome OS using Chrome browser tool for tab or desktop. Native Miracast support for Windows and Android device casting.

• Bring Your Own Meeting: Sends connected USB camera, microphone, and speaker deices to host computer for use in any video conferencing software.

• 4K/UHD Source & Display: Outputs at 4K for optimal clarity of spreadsheets and data content.
• Smooth Video: Glitch-free AV experience due to optimizations for video content and 30fps casting.
• Multi-Presenter Mode: Up to five presenters may share content at same time with auto adjusting screen layout. User preference layout setup for three or four presenters allows for optimal window placement based on usage.
• Wired HDMI Input: For wired and wireless presentation options from laptops or dedicated room computers.
• KDPlay Flash (KD-BYODFD) Included: Software auto-launcher with USB and USB-C connections allows. Additional KDPlay™ Flash sold separately
• Dual Monitor Support: Mirrored or independent viewing on two connected displays / projectors.
• Output Capture: Send HDMI output content from Main or Sub display to the connected host computer to completely immerse video conference participants with multi-presenter brainstorming sessions, etc.
• Annotation and White Board: Screen overlay tools for real-time collaboration. Screen captures are easily downloaded by QR code on screen or in web browser.

• Extended Monitor: Feature enables dual display setups such as video conference and presentation content view on side-by-side panels. Virtual Driver installation required for this feature

• Display Control: CEC or RS232 command sends during unit bootup, power on, and power off.

Additional Features

• WiFi Direct, WiFi Client, LAN Connection Modes: May act as the Wireless Access Point or may be accessed by devices via the wired or wireless network connection.
• Content Preview: Collapsible dock on side of display provides preview thumbnail and name of devices casting via KDPlay app.
• Touch Screen / Mouse Forwarding: Connect touchscreen or mouse USB to unit to point and click on casted device
• Customizable Home Screen: Load customer's logo or desired image to show signage and branding when not casting.
• Digital Signage Mode: May display a desired web page on scheduled start and stop times.
• Video Resolution: Selectable 4K 3840x2160 @ 30fps or 60fps [4:2:0] 10.2Gbps, 1920x1080p @ 60fps, 1280x800p @ 60fps, 1280x720p @ 60fps output resolution options based on EDID from connected display
• Audio De-embedding: Audio of the casted device is de-embedded at the unit’s analog L/R audio connector for ease of integrating with audio amplification and mixing system
• Easy Connection: Up to 16 simultaneous devices may connect, with access always provided to new connecting devices and automatic disconnect of oldest non-casting devices in case of maximum being reached
• Moderator Management: Administrator may start & stop device casting via web control page
• Web GUI Administration: Access unit setup, moderator, and security tools on web browser through LAN
• Four-Level Security: Including casting / pairing pin and Device-type permission options, AES-256 + RSA-1024 encryption.
• Simultaneous Secure Dual Network: Two network ports enable concurrent connection to Public and Private networks for ease of guest access without compromising security.
