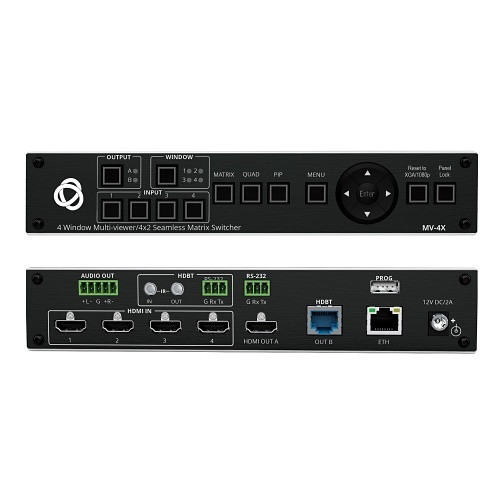

Kramer 72-00004790 4 Window Multi-Viewer / 4x2 Seamless Matrix Switcher - 72-00004790
Kramer 72-00004790 is a high-performance HDMI matrix switcher with integrated scaling technology and multi-windowing options. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K at 60Hz 4:4:4 and LPCM audio up to 7.1 channels and 192kHz are supported on both inputs and outputs. In addition, MV-4X is fully compatible with the HDCP 1.x and 2.3 standards. The product offers 2 outputs - HDMI and HDBT. Users can choose to display any of the four HDMI sources -individually, in full screen, or in a variety of multi-window modes that include quad mode, PiP, and PoP on both outputs. Alternatively, MV-4X offers a seamless (zero-time video cut) 4x2 matrix switcher option. The product also supports chroma-keying and includes a logo overlay feature. You can control and manage the MV-4X, including the input/window routing, position, and size via the front panel OSD buttons, Ethernet (with embedded webpages), and RS-232.
Main Features
- High Performance Multi-Viewer, 18G 4K HDMI product with 4 HDMI inputs and HDBT and HDMI outputs that supports HDMI up to 4K at 50/60 Hz 4:4:4 and HDBT up to 4K at 50/60 Hz 4:2:0
- Zero-Time Video Cuts, Connect up to four HDMI sources, an HDMI and an HDBT sink, and seamlessly switch between them
- HDMI Support, HDR10, CEC (for outputs only), 4K at 60 Hz, Y420, BT.2020, Deep Color (for inputs only), x.v.Color, 7.1 PCM, Dolby TrueHD, DTS-HD, as specified in HDMI 2.0
- Content Protection, Supports HDCP 2.3
- Chroma Keying Support, select to key the video input using a uniform-colored background
- Includes numerous filters and algorithms that eliminate picture artifacts
- Matrix Switching, Truly seamless zero time 4x2 switching in Matrix mode
- 4 Preset Memory Locations, Supports storage of multi-window arrangements as a preset for later use
- Auto Layout Support, Auto-window mode that automatically changes the number of visible windows based on the number of live sources
- Independent audio source selection in all modes
