Description

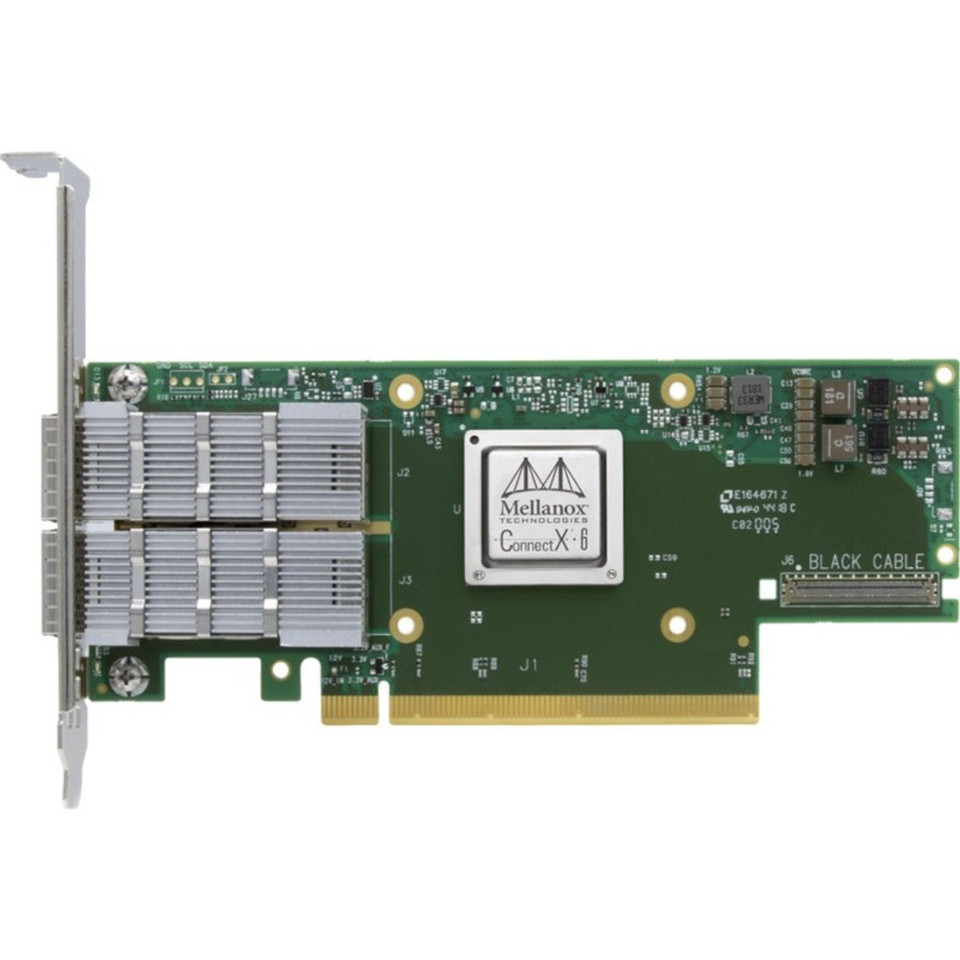

Lenovo ThinkSystem Mellanox ConnectX-6 HDR100/100GbE QSFP56 2-port PCIe VPI Adapter - PCI Express 4.0 x16 - 100 Gbit/s - 2 x Total Infiniband Port(s) - 2 x Total Expansion Slot(s) - QSFP56 - Plug-in Card

The ThinkSystem Mellanox ConnectX-6 HDR100/100GbE VPI Adapters offer 100 Gb/s Ethernet and InfiniBand connectivity for high-performance connectivity when running HPC, cloud, storage and machine learning applications.

Technical Specs

Media & Performance

Data Transfer Rate

100 Gbit/s

General Information

Product Type	Infiniband Host Bus Adapter
Manufacturer Part Number	4C57A14178
Manufacturer Website Address	http://www.Lenovo .com/us/en/
Packaged Quantity	1
Manufacturer	Lenovo Group Limited
Product Name	ThinkSystem Mellanox ConnectX-6 HDR100/100GbE QSFP56 2-port PCIe VPI Adapter
Product Line	ConnectX-6
Brand Name	Lenovo

I/O Expansions

Expansion Slot Type	QSFP56
Number of Total Expansion Slots	2

Miscellaneous

Additional Information

PCI Express Interface

PCIe 4.0 x16 host interface (also supports a PCIe 3.0 host interface)
Support for PCIe x1, x2, x4, x8, and x16 configurations
PCIe Atomic
TLP (Transaction Layer Packet) Processing Hints (TPH)
PCIe switch Downstream Port Containment (DPC) enablement for PCIe hot-plug
Advanced Error Reporting (AER)
Access Control Service (ACS) for peer-to-peer secure communication
Process Address Space ID (PASID) Address Translation Services (ATS)
IBM CAPIv2 (Coherent Accelerator Processor Interface)
Support for MSI/MSI-X mechanisms

Connectivity

One or two QSFP56 ports
Supports passive copper cables with ESD protection
Powered connectors for optical and active cable support

InfiniBand

Supports interoperability with InfiniBand switches (up to HDR100)
When used in a PCIe 3.0 slot, total connectivity is up to 100 Gb/s:
- One port adapter supports a single 100 Gb/s link
- Two-port adapter supports two connections of 50 Gb/s each or one 100 Gb/s active link and the other a standby link
When used in a PCIe 4.0 slot, total connectivity is up to 200 Gb/s:
- One port adapter supports a single 100 Gb/s link
- Two-port adapter supports two connections of 100 Gb/s each
HDR100 / EDR / FDR / QDR / DDR / SDR
IBTA Specification 1.3 compliant
RDMA, Send/Receive semantics
Hardware-based congestion control
Atomic operations
16 million I/O channels
256 to 4Kbyte MTU, 2Gbyte messages
8 virtual lanes + VL15

Ethernet (requires firmware 20.28.1002 or later)

Support interoperability with Ethernet switches (up to 100GbE, as 2 lanes of 50Gb/s data rate)
When used in the PCIe 3.0 slot, total connectivity is 100 Gb/s:
- One port adapter supports a single 100 Gb/s

Compatibility

ThinkSystem Servers:

SR630 V2 (7Z70 / 7Z71)
SR650 V2 (7Z72 / 7Z73)
SR670 V2 (7Z22 / 7Z23)
SR635 (7Y98 / 7Y99)
SR655 (7Y00 / 7Z01)
SR645 (7D2Y / 7D2X)
SR665 (7D2W / 7D2V)
SR850 V2 (7D31 / 7D32)
SR860 V2 (7Z59 / 7Z60)
SR950 (7X11 / 7X12)
SR630 (7X01 / 7X02)
SR650 (7X05 / 7X06)
SR670 (7Y36 / 7Y37)
SR850 (7X18 / 7X19)
SR850P (7D2F / 2D2G)
SR860 (7X69 / 7X70)

Physical Characteristics

Form Factor	Plug-in Card
Card Height	Full-height/Low-profile

Technical Information

Host Interface	PCI Express 4.0 x16
Total Number of InfiniBand Ports	2
