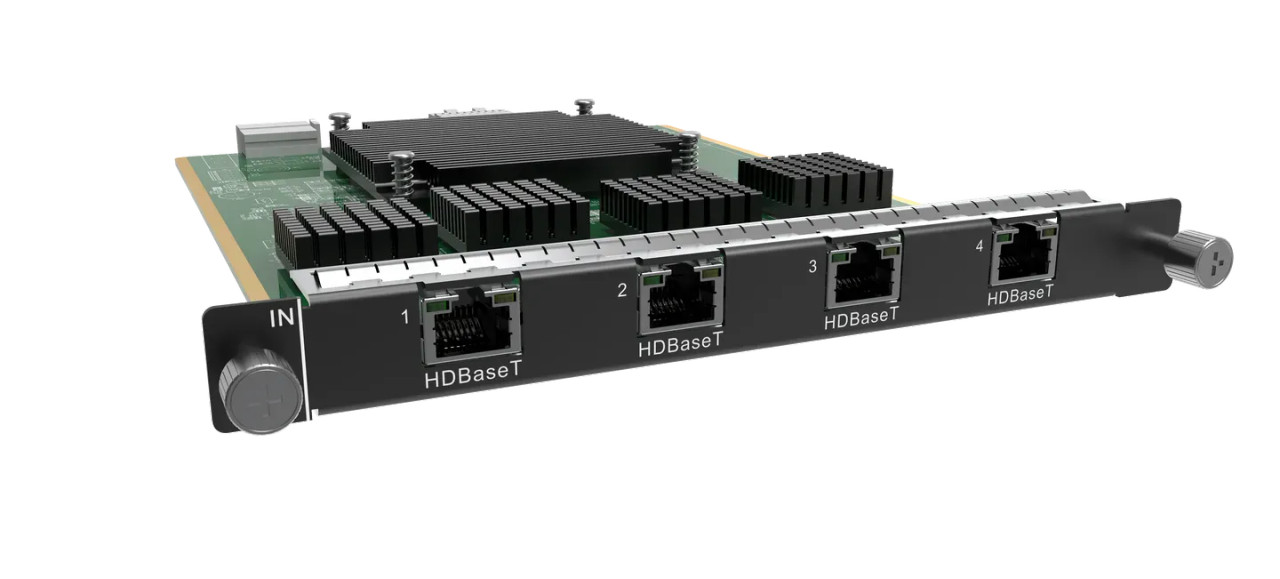

LG Novastar H_4xHDBaseT Input/Output card, For HDBaseT Connections - TKPLE-N119
The H Series input card offers high-performance connectivity with four Ethernet ports for high-speed network connections and supports both single and dual link input configurations with audio capabilities, making it suitable for comprehensive audio-visual setups. Single link input allows for simultaneous use of all ports with resolutions up to 2560×983 at 60Hz, while dual link input supports higher resolutions up to 3840×2160 at 30Hz.
Features
- 4x RJ45 Gigabit Ethernet ports
- Support for single link and dual link input modes, and accompanied
audio - Single link input:
- Four connectors are all available for input.
- Each connector supports the maximum resolution of
1920×1080@60Hz. - Custom resolution:
- Max. width: 2560 pixels (2560×983@60Hz)
- Max. height: 2560 pixels (884×2560@60Hz)
- HDCP 1.4 compliant
- Dual link input:
- Connector 2 and 4 are available for input.
- Each connector supports the maximum resolution of 3840×2160@30Hz.
- Custom resolution:
- Max. width: 3840 pixels (3840×1202@60Hz)
- Max. height: 3840 pixels (1092×3840@60Hz)
- HDCP 1.4 compliant
- Status LEDs:
- Green: Indicating the input source access status
- On: The input source is accessed normally.
- Off: No input source is accessed.
- Yellow: Indicating the input source status
- On: The input source is normal.
- Off: The input source has no signal or the input source is abnormal.
- Flashing: The connector is in communication.
- Green: Indicating the input source access status
- Specifications:
- Weight: 500 g
- Dimensions: 193 mm × 247.12 mm × 21.15 mm
- Power consumption: 39 W
