Description

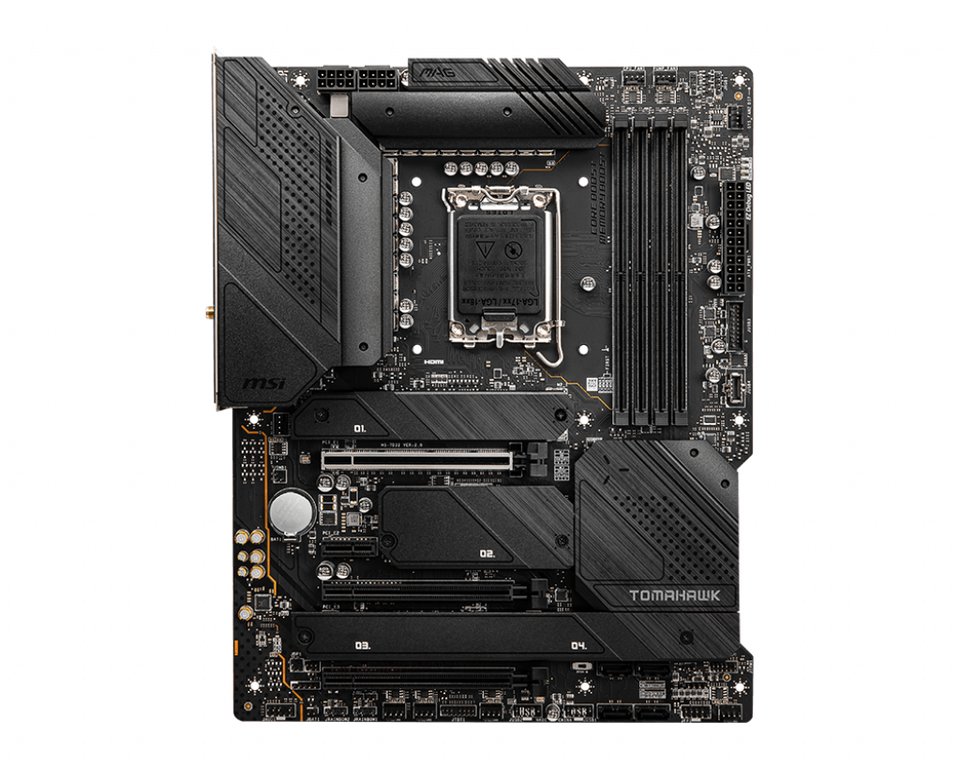

MAG Z690 TOMAHAWK WIFI

PROCESSOR

Supports 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors
Processor socket LGA1700

CHIPSET

Intel^® Z690 Chipset

MEMORY

4x DDR5 memory slots, supporting up to 128GB
Supports 1R 4800 MHz (by JEDEC & POR)
Max overclocking frequency:

1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5400+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

EXPANSION SLOT

3x PCIe x16 slots
- PCI_E1 (From CPU)
  - Support up to PCIe 5.0 x16
- PCI_E3 (From Z690 chipset)
  - Support up to PCIe 3.0 x4
- PCI_E4 (From Z690 chipset)
  - Support up to PCIe 3.0 x1
1x PCIe 3.0 x1 slot (From Z690 chipset)

MULTI-GPU

Supports AMD^® CrossFire^™ Technology

ONBOARD GRAPHICS

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

STORAGE

6x SATA 6Gb/s ports (From Z690 chipset)
4x M.2 slots (Key M)
- M2_1 slot (From CPU)
  - Supports up to PCIe 4.0 x4
  - Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (From Z690 chipset)
  - Supports up to PCIe 4.0 x4
  - Supports 2242/ 2260/ 2280 storage devices
- M2_3 slot (From Z690 chipset)
  - Supports up to PCIe 3.0 x4
  - Supports up to SATA 6Gb/s
  - Supports 2242/ 2260/ 2280 storage devices
- M2_4 slot (From Z690 chipset)
  - Supports up to PCIe 4.0 x4
  - Supports up to SATA 6Gb/s
  - Supports 2242/ 2260/ 2280 storage devices
Intel^® Optane™ Memory Ready for M.2 slots from Z690 Chipset
Supports Intel^® Smart Response Technology for Intel Core™ processors

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

Intel^® Z690 Chipset

1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)
1x USB 2.0 Type-A port on the back panel

Hub-GL850G

5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)

AUDIO

Realtek^® ALC4080 Codec

7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1x Intel^® I225V 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH^®

Intel^® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth^® 5.2

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Tuning Controller connector

LED FEATURE

1x EZ LED Control switch
1x 4-pin RGB LED connectors
3x 3-pin RAINBOW LED connectors
4x EZ Debug LED

BACK PANEL PORTS

DisplayPort 1.4
USB 2.0 Port
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI 2.1 Port
Flash BIOS Button
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT

DIMENSIONS

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

BOX CONTENT

TECHNICAL SPEC

CPU (MAX SUPPORT)	i9
SOCKET	1700
CHIPSET	Intel® Z690 Chipset
DDR4 MEMORY	6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz
MEMORY CHANNEL	Dual
DIMM SLOTS	4
MAX MEMORY (GB)	128
PCI-E X16	3
PCI-E X1	1
SATAIII	6
M.2 SLOT	4
RAID	0/1/5/10
LAN	1x Intel® I225-V 2.5G LAN
WIFI & BLUETOOTH	Intel® Wi-Fi 6E module
USB 3.2 PORTS (FRONT)	1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR)	1(Gen 2x2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT)	4
USB 2.0 PORTS (REAR)	2
DIMENSION	12 in. x 9.6 in. (30.5 cm x 24.4 cm)
AUDIO PORTS (REAR)	5+ Optical S/PDIF (Realtek® ALC4080 Codec)
DISPLAYPORT	1
HDMI	1
DIRECTX	12
FORM FACTOR	ATX
CROSSFIRE	Y
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
