Matrox Mura C4K Quad HDMI 2.1 Capture Cards - Enhanced Capabilities for Your Video Wall
Matrox Mura C4K quad HDMI capture PCI Express card provides OEMs and system builders with best-of-breed hardware and software to enhance their video walls and operator workstations with advanced video processing capabilities. Mura C4K capture cards are ideal for control rooms, digital signage, AV presentation and other applications that require high-density HDMI streams up to 4Kp60. For OEMs, system integrators, AV installers, and developers looking to create custom control functions, we also offer a complete range of video wall software, APIs, SDKs, and libraries.
Scale your video wall to your needs
Build video wall controllers, multiviewers, and personal video walls to the scale required for specific projects by integrating the low-footprint Mura C4K cards. Optimized for performance, Mura C4K enables easy integration and flexible scalability.
Direct memory access (DMA)
Directly access system or graphics memory for a given application to obtain the raw data and perform a variety of processing operations — including analysis, warping, and rendering, among others.
HDCP compliant capture card
Mura C4K cards capture up to 4 x 4Kp60 HDCP sources from a single-slot card. When paired with Matrox LUMA Pro Series, Mura C4K capture cards can display HDCP protected content on video walls and operator workstations.
Proven video wall ecosystem
Create the optimal setup for every need by pairing Matrox Mura C4K’s multi-channel 4K60 capture and encode capabilities with:
- LUMA Pro Series graphics cards to output up to 8x 8k60 or 16x 5K60 displays.
- LUMA Pro Series graphics cards and QuadHead2Go multi-monitor controllers to drive up to 64 Full HD screens.

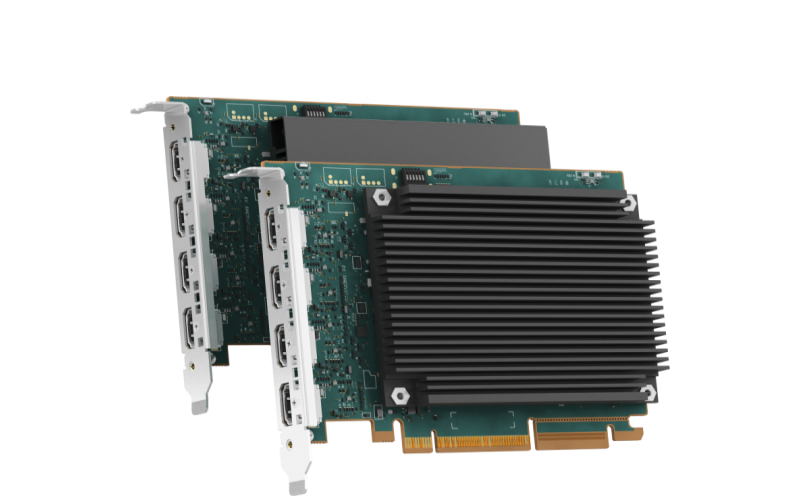

Matrox Mura C4KH
Fanless single-slot PCIe 4Kp60 HDMI quad-capture card provides increased reliability through its fanless design for high-density applications.
Matrox Mura C4K
Single-slot PCIe 4Kp60 HDMI quad-capture card delivers increased performance for high-density applications.
Mura C4K Technical Specifications
| Product | ||
| Part Number | MURA-C4KH | MURA-C4K |
| Cooling | Passive | Active |
| Connectors | 4x HDMI 2.1 | |
| Maximum input resolutions | 4x 4096x2160 60Hz, 10-bit | |
| Bus interface | PCIe Gen 3.0 x16 (x8 electrical) | |
| Form factor | Standard height, half length, single slot | |
| Color Space | ||
| Pixel Transfer Formats | RGB: 8:8:8, 10:10:10 (24/32 bits per pixel), YUV: 4:4:4, 4:2:2, 4:2:0 (8/10 bits per component), Color Space Conversion Support | |
| Video & Audio Processing | ||
| Audio Format | L-PCM, up to two channels | |
| Audio Sampling Rate | Between 32 KHz and 96 KHz | |
| HDCP Compliance | HDCP v1.4 & v2.3 are supported with Mura C4K capture cards and Matrox LUMA Pro graphics cards | |
| Environmental & Power Conditions | ||
| Conditions |
Operating: Temperature: 0 to 45 degrees Celsius Humidity: 20% to 80% non-condensing Altitude: from 650 hPA (3580m) to 1013 hPa (0m) |
|
| Storage Conditions |
Storage: Temperature: -40 to 70 degrees Celsius Humidity: 10% to 90% non-condensing Altitude: from 192 hPA (12000m) to 1020 hPa (-50m) |
|
| Typical Power Consumption | 29.8W typical, 32W Max | |
| General Specifications | ||
| Dimensions (L x H)/Weight2 |
5.953 inches (L) x 4.724 (H) inches 15.120 cm (L) x 12.615 cm (H) 0.66 lbs (298 grams) |
5.953 inches (L) x 4.724 (H) inches 15.120 cm (L) x 12.615 cm (H) 0.58 lbs (264 grams) |
| OS Support | Windows 10/11/LTSC | |
| Regulatory Certifications | FCC (US) Class A, CE (European Union) Class A, RCM (Australia/New Zealand) Class A, KC (Korea) Class B, ICES-3 (Canada) Class A, UKCA (United Kingdom) Class A. | |
| Environment Certifications | EU RoHS, China RoHS, REACH | |
| Warranty | 3 years | 2 years |
| Accessories (sold separately) | ||
| Secure cable solution | SK-SLNC-4 | |
