Mimo UM-760C-OF 7" Open-frame LCD Touchscreen Monitor - 16:9 - 15 ms - 7" Class - CapacitiveMulti-touch Screen - 1024 x 600 - WSVGA - 262,144 Colors - 700:1 - 250 Nit - LED Backlight - Speakers - USB - RoHS - 1 Year 700:1 UM-760C-OF USB OPEN FRAME

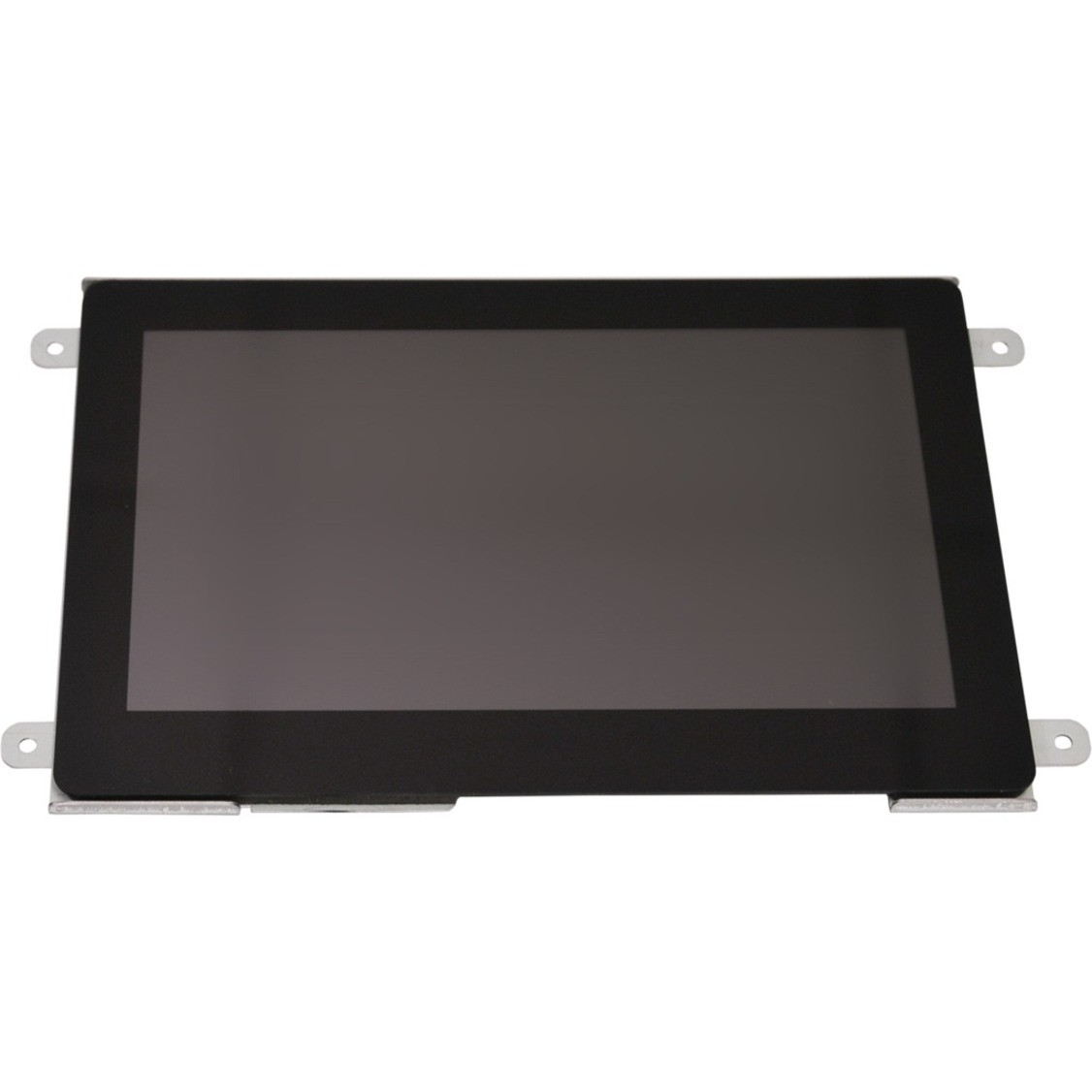

Open Frame 7" USB Capacitive Touch Screen Monitor
The UM-760C-OF/UM-760CH-OF adds Capacitive touch to the 7" line of open frame displays. The UM-760C-OF/UM-760CH-OF is a 7" small capacitive open frame touchscreen monitor for applications that will be integrated into other equipment or enclosures. Same slick design features but now with the responsiveness of a 5 point multi-touch capacitive touchscreen all in a long-lasting molded metal product cycle-enclosure. Future generation panels can be phased-in without external changes. The screen can display in either landscape or portrait orientations. The UM-760C-OF/UM-760CH-OF open frame touchscreen monitor is designed to provide the most cost effective solutions for consumer, retail POS, and hospitality markets.
Available in Single Cable USB Video
Utilizing the same single cable USB display technology as our line of displays, the UM-760C-OF sends video, touch, and power over a single USB connection.
And now available with HDMI
Now optionally available with the ubiquitous HDMI input for video. Previously only available with the convenience of single cable USB video, the UM-760CH-OF from Mimo now offers HDMI to supplement where USB video is not supported or inconvenient. With the HID compliant touch screen plus HDMI video, the new UM-760CH-OF can be installed to almost any platform without drivers.
Uniquely, this new monitor line still reduces number of cables. While a typical HDMI touch display will require 3 separate cables, the new HDMI touch displays from Mimo only require 2 cables. This simplifies connection, and makes for a more attractive installation.
- Driver element: a-si TFT active matrix
- Pixel arrangement: RGB vertical stripe
- Display colors: 262,144
- Luminance, White: 250 CD/m2
- Capacitive 5 point touch panel
- Windows and Linux HID support
- Response time: 15ms
- Rear 4 point mounting for secure installation
- Utilizes Displaylink for power, touch and video over single USB connection
