Mobilemark MXFG608 (2x Global 5G/LTE, 1x WiFi 6E, 1x GNSS) Surface Mount Mimo Maxfin Antenna - MXFG608
The 6-cable MXFG608 “MaxFin” (2x Global 5G LTE, 3x WiFi 6E, GNSS) antennas include two Global 5G Sub-6 LTE antennas, three WiFi 6E antennas, and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for both Cellular and WiFi. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.
The Global LTE 5G-ready antenna element covers: 617-960 & 1710-6000 MHz. Furthermore, it covers all Cellular bands, worldwide. In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.

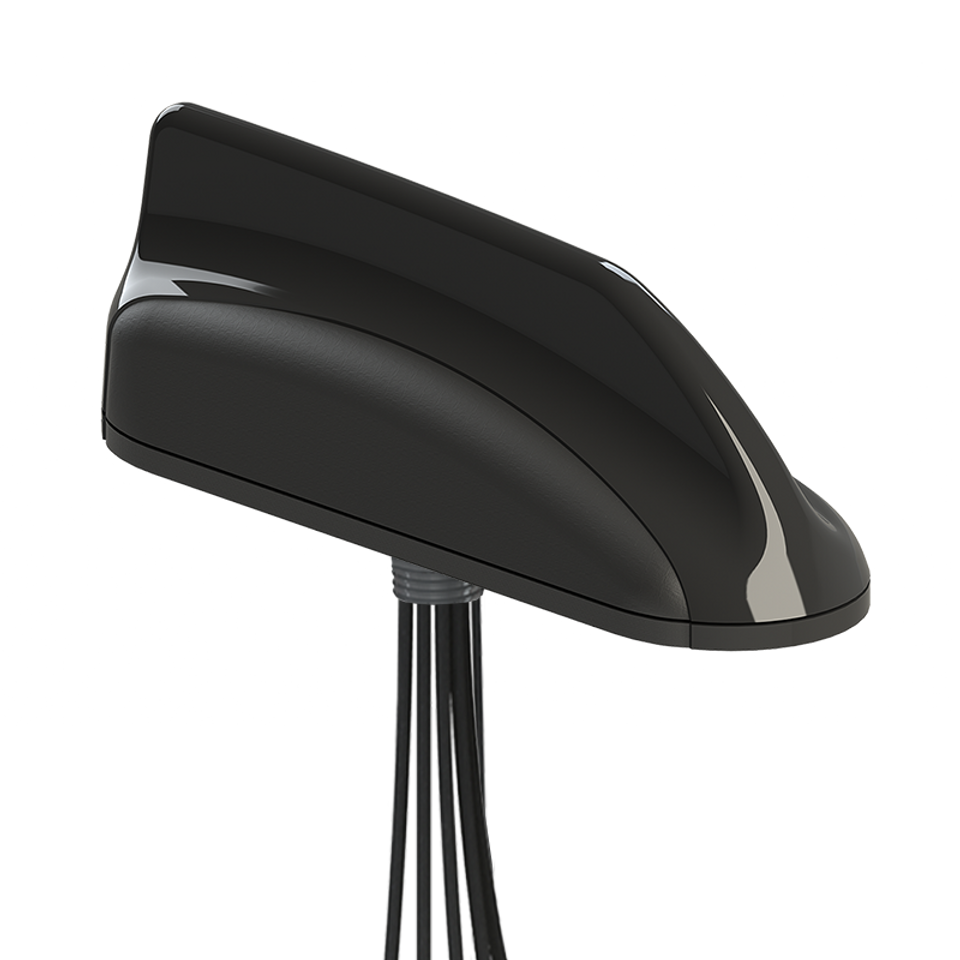

The MXFG608 “MaxFin” (2x Global 5G LTE, 3x WiFi 6E, GNSS) elements all fit in this slim tapered radome that measures only 7 1/2″ long x 2.25″ wide by 2.5″ tall (19 cm x 5.7 cm x 6.4 cm). The antenna housing contains a stylish combination of matte & polished finish, providing a sleek, high-tech look on the vehicle.
Features
-
6 cables: two Global 5G LTE, three WiFi 6E, one GNSS
-
Cable 1 & 2: 617-960 MHz, 3 dBi & 1710-6000 MHz, 4 dBi
-
Cable 3 – 5: 2.4-2.5 & 4.9-7.2 GHz, 5 dBi
-
Cable 6 (GNSS): 1561, 1575, & 1602 MHz, LNA 26 dB, 5 dBi
-
Specify MMXFG608 for mag-mount version.
-
Specify MXF608 or MMXF608 for GPS models.
