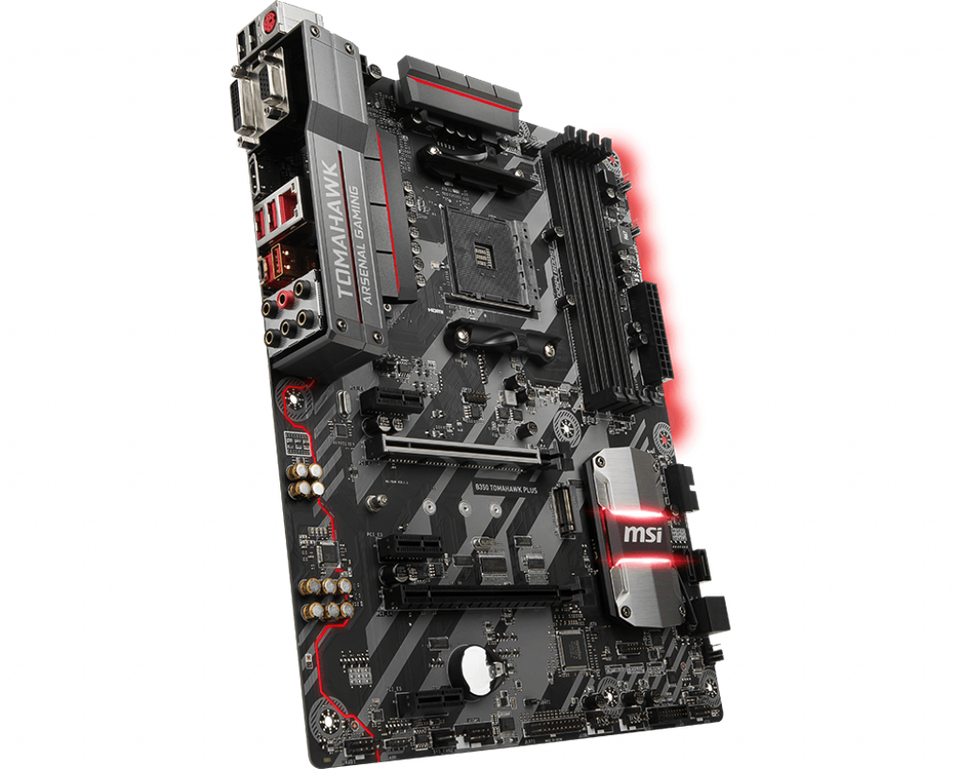

MSI B350 TOMAHAWK PLUS MOTHERBOARD

CPU
• Supports AMD^® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4

Chipset

• AMD^® B350 Chipset

Main Memory

• 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
- Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz *
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
* A-series / Athlon™ X4 processors support up to 2400 MHz. Please refer www.msi.com for more information on compatible memory.

Slots

• 1 x PCIe 3.0 x16 slot (PCI_E2)
- Supports x 16 speed with RYZEN Series Processors
- Supports x8 speed with AMD^® Ryzen™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors
- Supports x4 speed with AMD^® Athlon™ with Radeon™ Vega Graphics Processors • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*
• 3 x PCIe 2.0 x1 slots(PCI_E1, PCI_E3, PCI_E5)
* PCI_E4 slot will become PCIe 2.0 x2 mode, when installing device in any PCIe x1 slot.

Multi-GPU
• Supports 2-Way AMD^® CrossFire™ Technology*
* This motherboard supports CrossFire™ technology when all PCIe x1 slots are empty.

Onboard Graphics

• 1 x VGA port, supports a maximum resolution of 2048x1536, 2048x1280, 2048x1152(*1,2,3)
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz(*1,3)
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz(*1,2,3)
1. Only support when using AMD^® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series Processors.
2. Due to CPU spec limitation, when using AMD Athlon™ with Radeon™ Vega Graphics Processors, it could support up to 2 display with HDMI/ VGA output.
3. Maximum shared memory of 2048 MB

Storage
• AMD^® B350 Chipset
• 2 x SATA 6Gb/s ports (SATA1, SATA2)
- Support RAID 0, RAID 1
• ASMedia^® ASM1061 Chipset
- 2 x SATA 6Gb/s ports* (SATA3, SATA4)
• AMD^® processor
- 1 x M.2 port (Key M)
- Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2(AMD^® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors) and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices

USB

• AMD^® B350 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connectors
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

• AMD^® processor
- 2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

• ASMedia^® ASM1143 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10 Gbps) Type-A port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10 Gbps) Type-C port on the back panel

Audio

• Realtek^® ALC892 Codec
- 7.1-Channel High Definition Audio

LAN
• 1 x Realtek^® 8111H Gigabit LAN controller

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x M.2 slot (Key M)
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump-fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 1 x 4-pin RGB LED strip connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x TPM module connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 2 x USB 3.1 Gen1 Type-A ports
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 6 x OFC audio jacks

Dimension
• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor

Mounting
• 9 mounting holes

Operating System
• Support for Windows^® 10 64-bit
• Support for Windows^® 7 64-bit
* To support Windows^® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Unpacking
packing

TECHNICAL SPEC

CPU (MAX SUPPORT)	RYZEN 7
SOCKET	AM4
CHIPSET	AMD® B350 Chipset
DDR4 MEMORY	1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz
MEMORY CHANNEL	Dual
DIMM SLOTS	4
MAX MEMORY (GB)	128
PCI-E X16	1
PCI-E GEN	Gen3(16), Gen2(4)
PCI-E X1	3

SATAIII	4
M.2 SLOT	1
TPM (HEADER)	1
RAID	0/1
LAN	10/100/1000*1
USB 3.1 PORTS (FRONT)	4(Gen1, Type A)
USB 3.1 PORTS (REAR)	3(Gen1, Type A), 1(Gen1, Type C)
USB 2.0 PORTS (FRONT)	4
USB 2.0 PORTS (REAR)	2
SERIAL PORTS(FRONT)	1
AUDIO PORTS (REAR)	Realtek® ALC892 Codec
DVI-D	1
HDMI	1
VGA	1
DIRECTX	12
FORM FACTOR	ATX
CROSSFIRE	Y
OPERATING SYSTEM	Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
