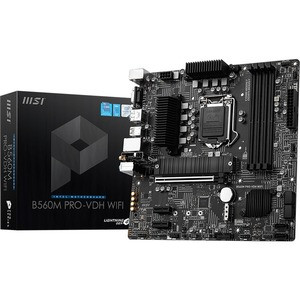

MSI B560M PRO-VDH WIFI Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Micro ATX - Core i3, Core i5, Core i7, Core i9, Celeron, Pentium Gold Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11ax - HDMI - DisplayPort - 6 x SATA Interfaces MSI B560M PRO-VDH WIFI MATX
The MSI B560M PRO-VDH is design for robust industrial applications. Build your PC with confidence of high performance and durability.
Features
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5066(OC) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Technical Specs
Audio
| Audio Channels | 7.1 |
I/O Controller
| Controller Type | Serial ATA/600 |
Video
| Onboard Video | CPU Dependent Video |
Warranty
| Limited Warranty | 3 Year |
Miscellaneous
| Package Contents |
|
| Country of Origin | China |
| Brand Compatibility | Intel |
Network & Communication
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| 2.5Gigabit Ethernet | Yes |
Physical Characteristics
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 9.6" |
Memory
| Maximum Memory | 128 GB |
| 128 GB | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 2666 MHz |
| 2933 MHz | |
| 2133 MHz | |
| 5066 MHz | |
| 4600 MHz | |
| 3200 MHz | |
| 4000 MHz | |
| 4266 MHz | |
| 4600 MHz | |
| 5066 MHz | |
| 2133 MHz | |
| 2666 MHz | |
| 2933 MHz | |
| 3200 MHz | |
| 4000 MHz | |
| 4266 MHz | |
| Intel Optane Memory Ready | Yes |
I/O Expansions
| Number of PCI Express x1 Slots | 2 |
| Number of Total Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 3 |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 3.2 Ports | 2 |
General Information
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | B560MPVDHWI |
| Manufacturer Website Address | http://www.msi.com |
| Manufacturer | MSI |
| Product Model | B560M PRO-VDH WIFI |
| Product Name | PRO B560M PRO-VDH WIFI Desktop Motherboard |
| Product Series | PRO |
| Brand Name | MSI |
Interfaces/Ports
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
Processor & Chipset
| Processor Supported | Core i9 |
| Core i7 | |
| Core i5 | |
| Pentium Gold | |
| Core i3 | |
| Celeron | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Chipset Manufacturer | Intel |
