SPECIFICATIONS

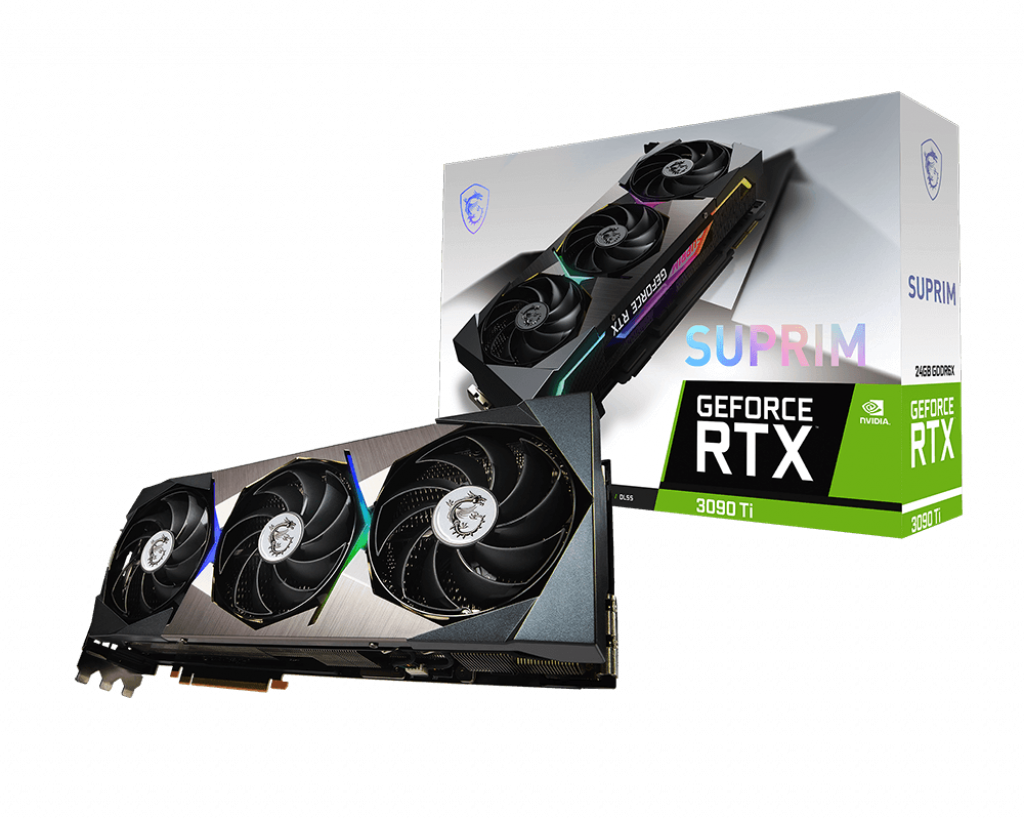

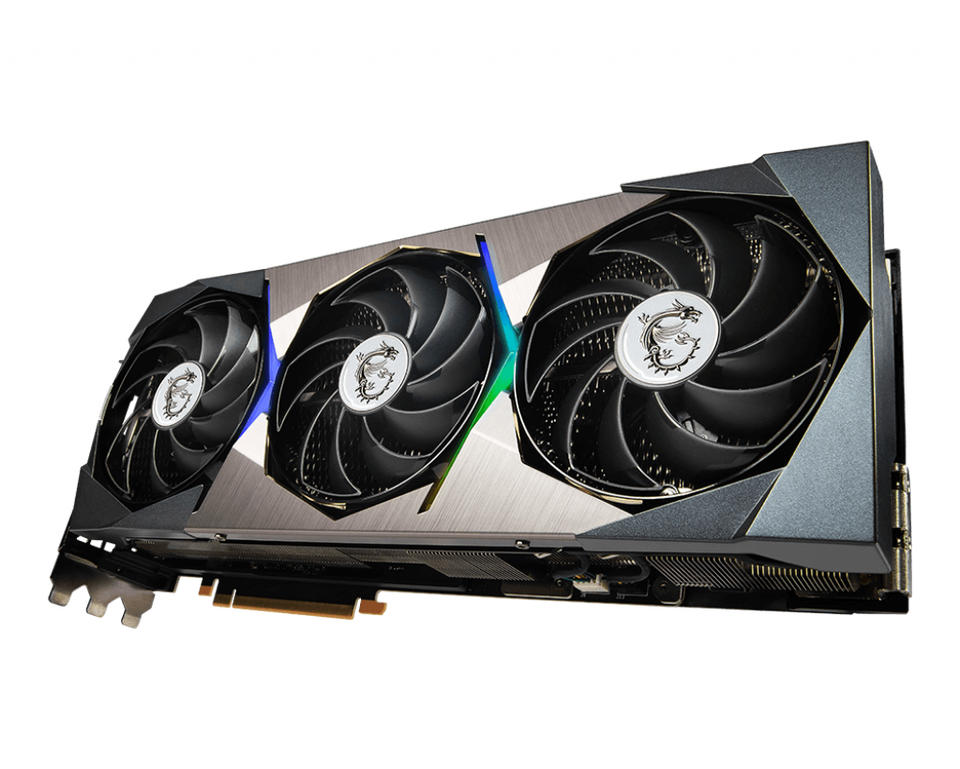

Model Name GeForce RTX 3090 Ti SUPRIM 24G
Graphics Processing Unit NVIDIA®
GeForce RTX™
3090 Ti
Interface PCI Express®
Gen 4
Cores 10752 Units
Core Clocks
Extreme Performance: 1935 MHz (MSI
Center) Boost: 1920 MHz (GAMING & SILENT
Mode)
Memory Speed 21 Gbps
Memory 24GB GDDR6X
Memory Bus 384-bit
Output
DisplayPort x 3 (v1.4a) HDMI x 1 (2.1)
(Supports 4K 120Hz HDR, 8K 60Hz HDR and
Variable Refresh Rate as specified in HDMI
2.1)
HDCP Support Y
Power consumption 450W
Power Connectors PCIe Gen 5 16-pin connector x 1
Recommended PSU (W) TBD
Card Dimension(mm) 338 x 140 x 71 mm
Weight (Card / Package) 2154g / 3309g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
VR Ready Y
G-SYNC™ technology Y
Adaptive Vertical Sync Y
Digital Maximum Resolution 7680 x 4320

FEATURES
TRI FROZR 2S
Thermals are kept in check in masterful ways under that sculpted
exterior, letting you focus on your games.
TORX FAN 4.0
A masterpiece of teamwork, fan blades work in pairs to create
unprecedented levels of focused air pressure.
Core Pipe
Precision-machined heat pipes ensure max contact and spread
heat along the full length of the heatsink.
Airflow Control
Don't sweat it, Airflow Control guides the air to exactly where it
needs to be for maximum cooling.
Zero Frozr
Zero Frozr is the calm before the storm, keeping fans still and
maintaining silence until cooling is needed.

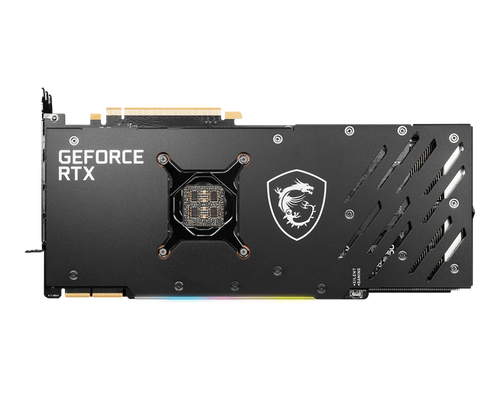

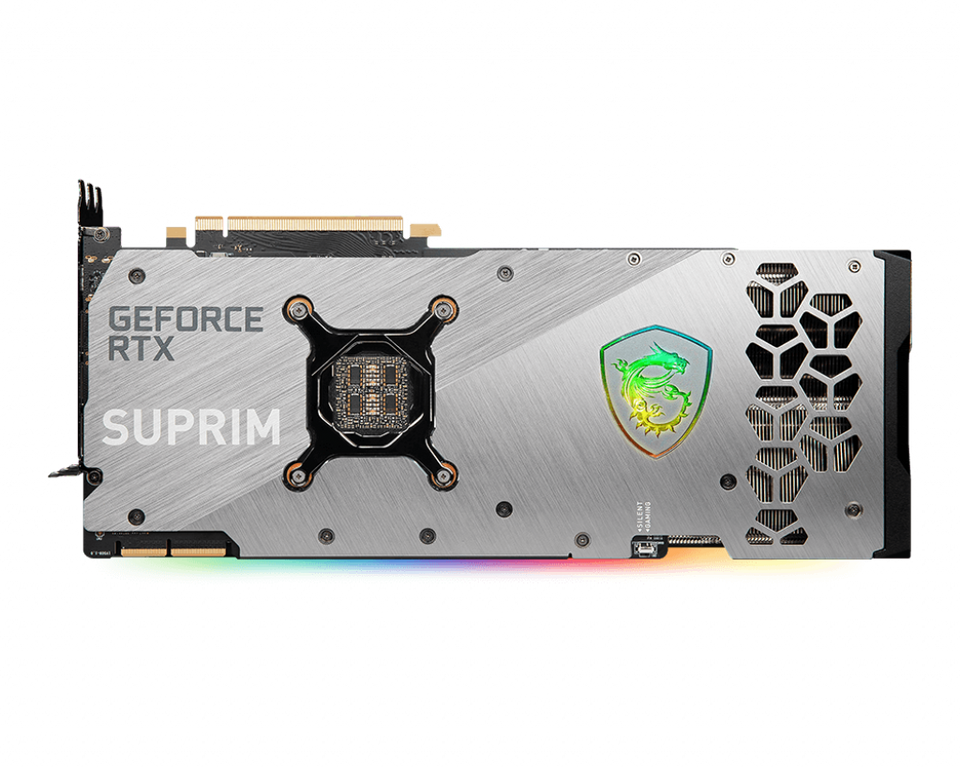

Aluminum Backplate
Thermal pads beneath the sturdy metal backplate provide
additional cooling.
Dual BIOS
Dual BIOS gives you the choice to prioritize for full performance in
GAMING mode or low noise in SILENT mode.
MSI Center
Migrate data with backup & restore functionality, monitor drive
health and performance metrics in real-time in MSI Cen
