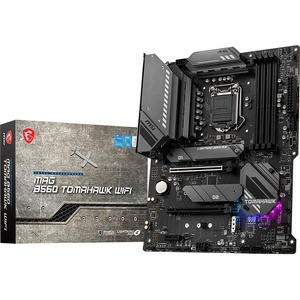

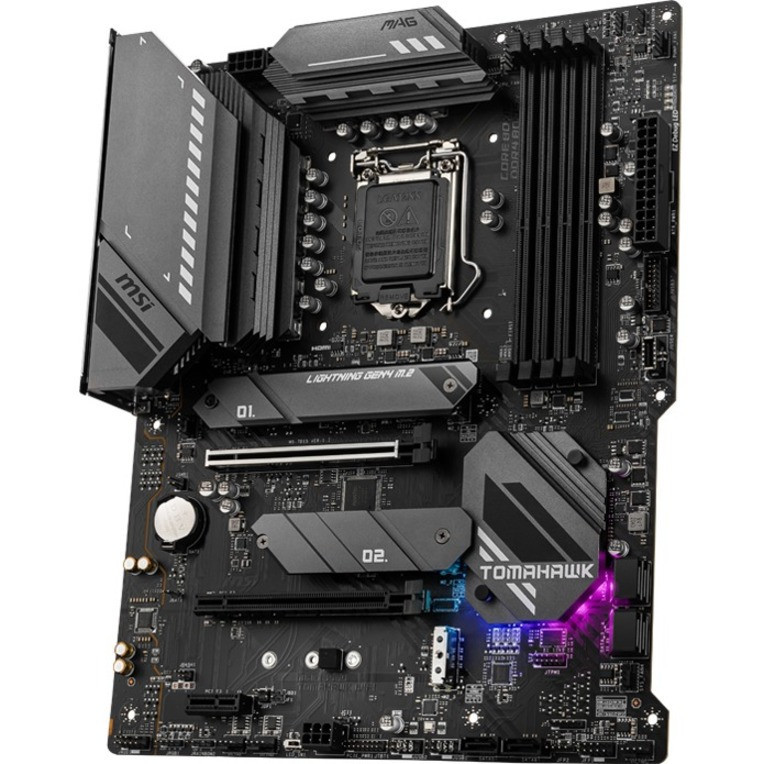

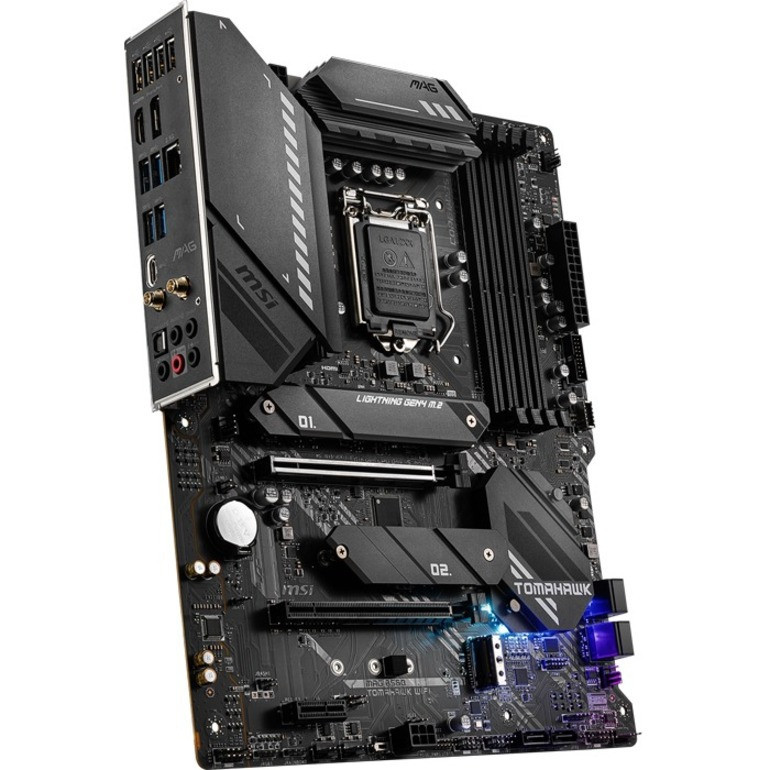

MSI MAG B560 TOMAHAWK WIFI Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces MSI MAG B560 TOMAHAWK WIFI ATX
PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
M.2 SHIELD FROZR
World's fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
DIY 2.0 - INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast.
LIGHTNING GEN 4 M.2
Utilizing 11th Gen Intel processors, MSI B560 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.
OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
MSI LAN MANAGER
- - Automatically prioritizes games above other applications -
- - Allows you to change applications' traffic priority -
- - Allows you to customize bandwidth for each application -
MAG B560 TOMAHAWK WIFI
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5066(OC) MHz
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
| Audio Channels | 7.1 |
| Controller Type | Serial ATA/600 |
| Form Factor | ATX |
| Onboard Video | CPU Dependent Video |
| Limited Warranty | 3 Year |
| Country of Origin | China |
| Brand Compatibility | Intel |
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 3 |
| Maximum Memory | 128 GB |
| 128 GB | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 3200 MHz |
| 4000 MHz | |
| 4266 MHz | |
| 4600 MHz | |
| 5066 MHz | |
| 2133 MHz | |
| 2666 MHz | |
| 5066 MHz | |
| 4600 MHz | |
| 4266 MHz | |
| 4000 MHz | |
| 2933 MHz | |
| 2933 MHz | |
| 3200 MHz | |
| 2666 MHz | |
| 2133 MHz | |
| Intel Optane Memory Ready | Yes |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| 2.5Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 3 |
| Number of Onboard USB 3.2 Ports | 3 |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | B560TOMAWIFI |
| Manufacturer Website Address | http://www.msi.com |
| Manufacturer | MSI |
| Product Model | B560 TOMAHAWK WIFI |
| Product Name | MAG B560 TOMAHAWK WIFI Desktop Motherboard |
| Product Line | MAG |
| Brand Name | MSI |
| S/PDIF | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Processor Supported | Celeron |
| Core i9 | |
| Core i7 | |
| Core i5 | |
| Core i3 | |
| Pentium Gold | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Chipset Manufacturer | Intel |
