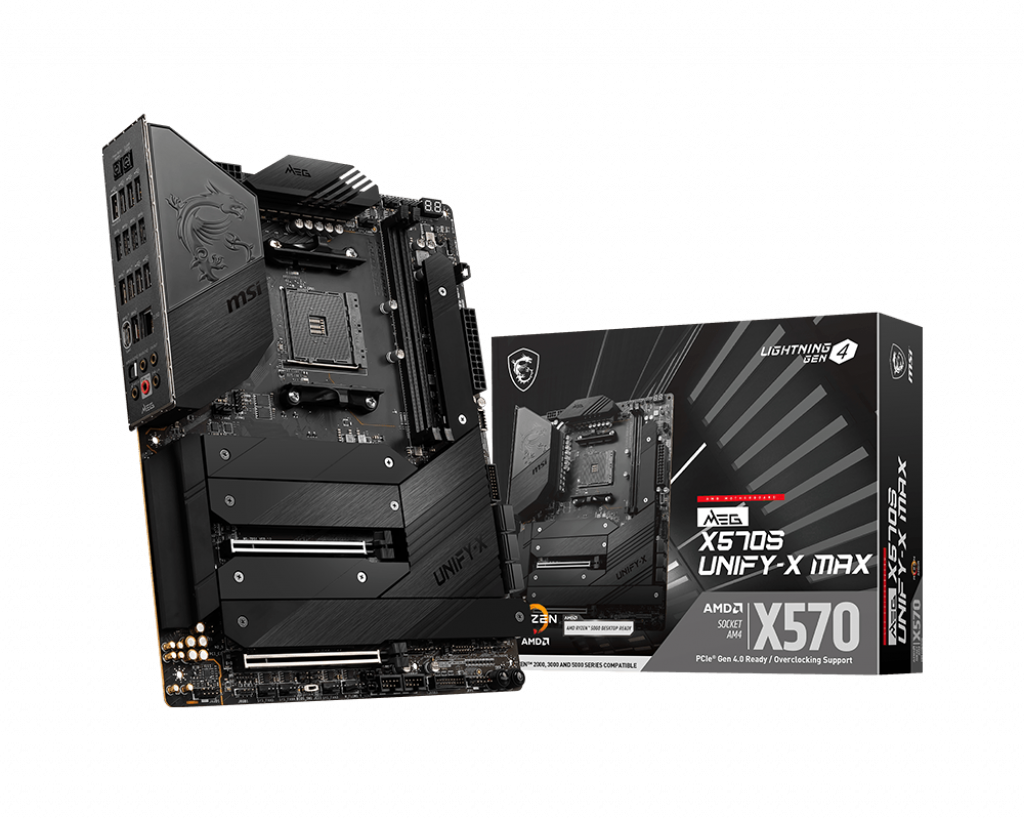

MSI MEG X570S UNIFY-X MAX Desktop Motherboard - AMD Chipset - Socket AM4 - ATX - Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 3 PRO, Ryzen 9 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - 6 x SATA Interfaces
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
- Supports DDR4 Memory, Dual Channel 5300(OC) MHz+ (MAX 5800)
- Sextuple M.2 Connectors: Onboard 6x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution. The Industry leading design maximizes bandwidth to fully utilize high-end storage devices, provides multiple configurations for demanding gamers and power users.
- Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance.
- Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance.
- Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate to ensure the extreme performance with low temp.
- 2.5G LAN Network Solution: Onboard 2.5G LAN with LAN manager delivering the best online gaming experience.
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, Lightning USB 20G.
- Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Technical Specs
Audio
| Audio Channels | 7.1 |
Network & Communication
| 2.5Gigabit Ethernet | Yes |
Video
| Onboard Video | No |
Warranty
| Limited Warranty | 3 Year |
Miscellaneous
| Country of Origin | China |
| Brand Compatibility | AMD |
I/O Expansions
| Number of Total Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 2 |
Memory
| Maximum Memory | 64 GB |
| 64 GB | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 2 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 5300 MHz |
| 5800 MHz | |
| 4600 MHz | |
| 4266 MHz | |
| 3200 MHz | |
| 3066 MHz | |
| 2800 MHz | |
| 2933 MHz | |
| 3000 MHz | |
| 2667 MHz | |
| 1866 MHz | |
| 2133 MHz | |
| 2400 MHz | |
| 2667 MHz | |
| 2800 MHz | |
| 2933 MHz | |
| 3000 MHz | |
| 3066 MHz | |
| 3200 MHz | |
| 4266 MHz | |
| 4600 MHz | |
| 5300 MHz | |
| 5800 MHz | |
| 1866 MHz | |
| 2133 MHz | |
| 2400 MHz |
Physical Characteristics
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
I/O Controller
| RAID Levels | 1 |
| 10 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 6 |
| Number of Onboard USB 3.2 Ports | 5 |
Interfaces/Ports
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of USB Ports | 14 |
| Number of USB 2.0 Ports | 6 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
General Information
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | X570SUNXMAX |
| Manufacturer Website Address | http://www.msi.com |
| Manufacturer | MSI |
| Product Model | X570S UNIFY-X MAX |
| Product Name | MEG X570S UNIFY-X MAX Desktop Motherboard |
| Product Line | MEG |
| Brand Name | MSI |
Processor & Chipset
| Processor Supported | Ryzen 5 Pro |
| Ryzen 7 | |
| Ryzen 7 PRO | |
| Ryzen 9 | |
| Ryzen 3 | |
| Ryzen 3 PRO | |
| Ryzen 5 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Chipset Manufacturer | AMD |
