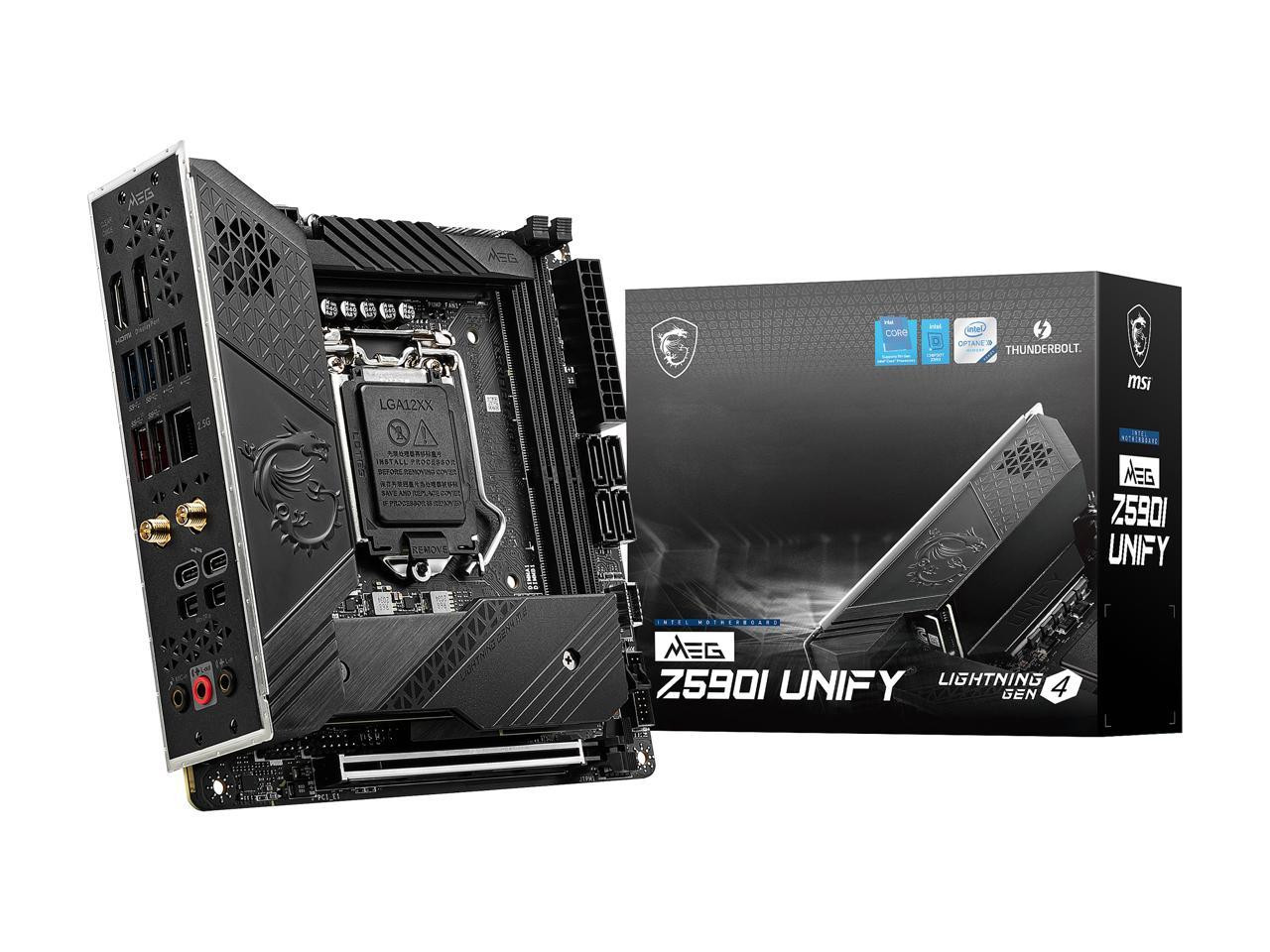

MSI MEG Z590I UNIFY Gaming Motherboard Mini -ITX - Supports 11th Gen Intel Core Processors, LGA 1200 - 8+1+1 Phase 90A SPS, DDR4 Boost (5600MHz/OC), PCIe 4.0 x16, 2 x M.2 Gen4/3 x4, Wi-Fi 6E
TECHNICAL SPEC
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® Z590 Chipset |
| DDR4 MEMORY | 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 2 |
| MAX MEMORY (GB) | 64 |
| PCI-E X16 | 1 |
| SATAIII | 4 |
| M.2 SLOT | 2 |
| RAID | 0/1/10 |
| LAN | 1x Intel® I225-V 2.5G LAN |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E AX210 |
| THUNDERBOLT 4 | 2x USB Type-C up to 40G, Charging support up to 5V/3A, 15W, 2x Mini DisplayPort input ports |
| USB 3.1 PORTS (FRONT) | 1(Gen2, Type C), 2(Gen1, Type A) |
| USB 3.1 PORTS (REAR) | 2(Gen2, Type A), 2(Gen1, Type A) |
| USB 2.0 PORTS (FRONT) | 2 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) | Realtek® ALC892 Codec |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | Mini-ITX |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
