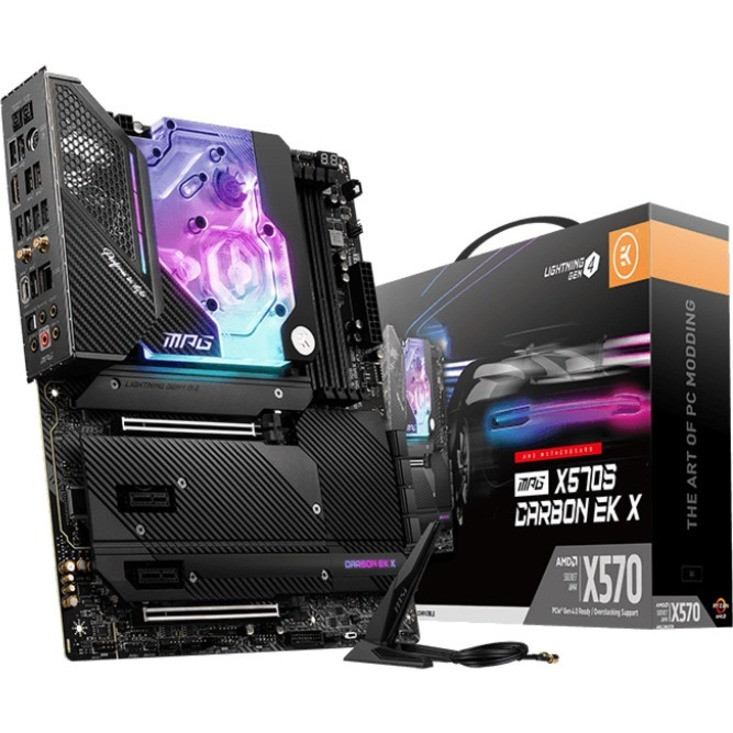

MSI MPG X570S CARBON EK X Desktop Motherboard - AMD Chipset - Socket AM4 - ATX - Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 3 PRO, Ryzen 9 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - 8 x SATA Interfaces
- Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
- Supports DDR4 Memory, up to 5300+(OC) MHz
- CPU + VRM Water Cooling: A custom-designed EK monoblock with build-in inflow indicator that offers pristine cooling for both the CPU and VRM power delivery section
- Enhanced Power Design: 14+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
- M.2 Shield Frozr: All M.2 slots covered with Shield Frozr to built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Technical Specs
Audio
| Audio Channels | 7.1 |
Video
| Onboard Video | CPU Dependent Video |
Warranty
| Limited Warranty | 3 Year |
Miscellaneous
| Country of Origin | China |
| Brand Compatibility | AMD |
Physical Characteristics
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
Memory
| Maximum Memory | 128 GB |
| 128 GB | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 2800 MHz |
| 2933 MHz | |
| 3000 MHz | |
| 3066 MHz | |
| 3200 MHz | |
| 3600 MHz | |
| 4000 MHz | |
| 4266 MHz | |
| 4400 MHz | |
| 5100 MHz | |
| 2667 MHz | |
| 2400 MHz | |
| 2133 MHz | |
| 1866 MHz | |
| 4400 MHz | |
| 5100 MHz | |
| 5300 MHz | |
| 4266 MHz | |
| 5300 MHz | |
| 1866 MHz | |
| 2133 MHz | |
| 2400 MHz | |
| 2667 MHz | |
| 2800 MHz | |
| 2933 MHz | |
| 3000 MHz | |
| 3066 MHz | |
| 3200 MHz | |
| 3600 MHz | |
| 4000 MHz |
I/O Expansions
| Number of PCI Express x1 Slots | 2 |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 4 |
Network & Communication
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| 2.5Gigabit Ethernet | Yes |
I/O Controller
| RAID Levels | 10 |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Onboard Interfaces
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 4 |
| Number of Onboard USB 3.2 Ports | 5 |
General Information
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | X570SCAREKX |
| Manufacturer Website Address | http://www.msi.com |
| Manufacturer | MSI |
| Product Model | X570S CARBON EK X |
| Product Name | MPG X570S CARBON EK X Desktop Motherboard |
| Product Line | MPG |
| Brand Name | MSI |

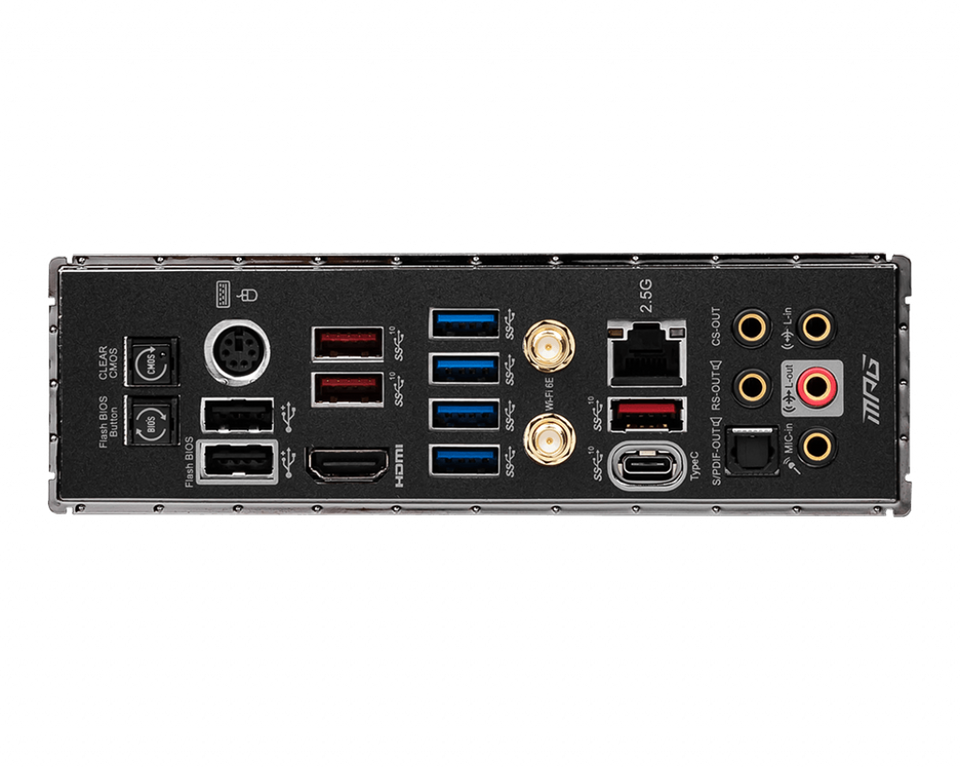

Interfaces/Ports
| S/PDIF | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
Processor & Chipset
| Processor Supported | Ryzen 5 Pro |
| Ryzen 7 PRO | |
| Ryzen 9 | |
| Ryzen 5 | |
| Ryzen 3 PRO | |
| Ryzen 3 | |
| Ryzen 7 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Chipset Manufacturer | AMD |
