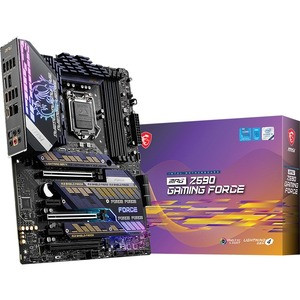

MSI MPG Z590 GAMING FORCE Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 6 x SATA Interfaces LGA1200 INTEL MAX-128GB ATX PCIE16
PREMIUM
HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
ENHANCED
PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

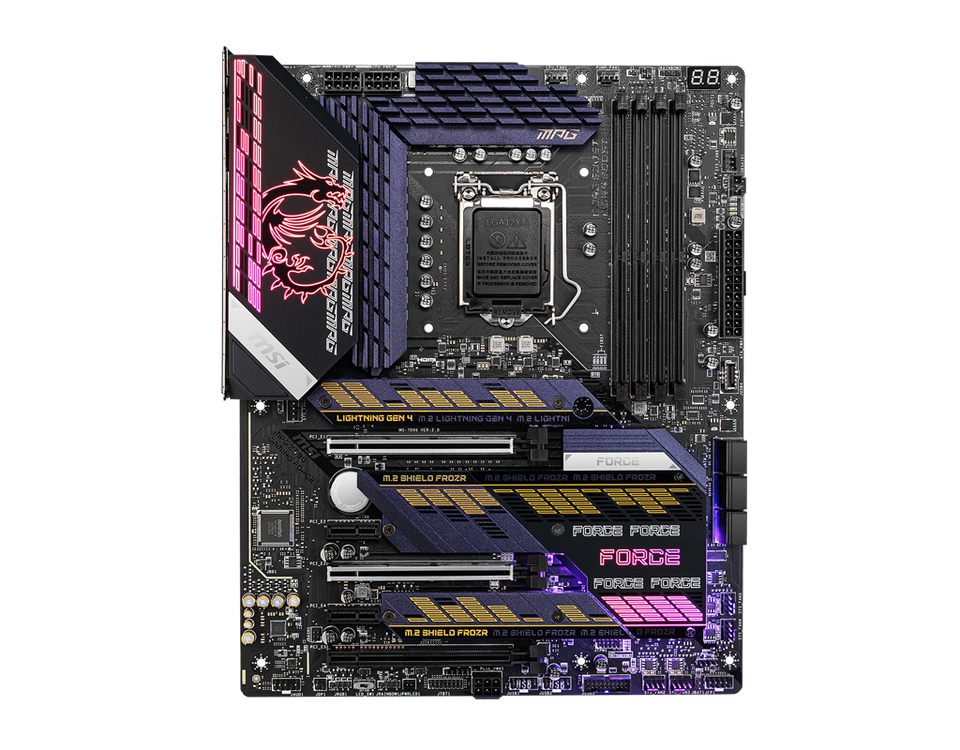

MPG Z590 GAMING FORCE
- Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Audio
Network & Communication
Video
| Onboard Video | CPU Dependent Video |
Warranty
Miscellaneous
| Package Contents | - MPG Z590 GAMING FORCE Desktop Motherboard
- USB Drive
- User Manual
- Quick Installation Guide
- M.2 Screw / Standoff Sets
- Screwdrivers
- Cleaning Brush
- 2 x SATA Cables
- 1 to 2 RGB LED Extension Y Cable
- CORSAIR RGB LED Extension
- Rainbow RGB LED Extension Cable
- Cable Stickers
- MPG Stickers
- Case Badge
- Reward Program / Shout Out Flyer
- Registration Card
- Product Catelog
|
| Country of Origin | China |
| Brand Compatibility | Intel |
Physical Characteristics
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
I/O Expansions
| Number of PCI Express x1 Slots | 2 |
| Number of Total Expansion Slots | 5 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 5 |
Memory
| Maximum Memory | 128 GB |
| 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM |
| Memory Speed Supported | 3200 MHz |
| 5333 MHz |
| 4700 MHz |
| 4400 MHz |
| 2133 MHz |
| 2666 MHz |
| 2933 MHz |
| 4000 MHz |
| 4400 MHz |
| 4700 MHz |
| 5333 MHz |
| 2133 MHz |
| 2666 MHz |
| 2933 MHz |
| 3200 MHz |
| 4000 MHz |
| Intel Optane Memory Ready | Yes |
I/O Controller
| RAID Levels | 10 |
| 1 |
| 0 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 3 |
| Number of Onboard USB 3.2 Ports | 3 |
General Information
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | Z590FORCE |
| Manufacturer Website Address | http://www.msi.com |
| Manufacturer | MSI |
| Product Model | Z590 GAMING FORCE |
| Product Name | MPG Z590 GAMING FORCE Desktop Motherboard |
| Product Line | MPG |
| Brand Name | MSI |

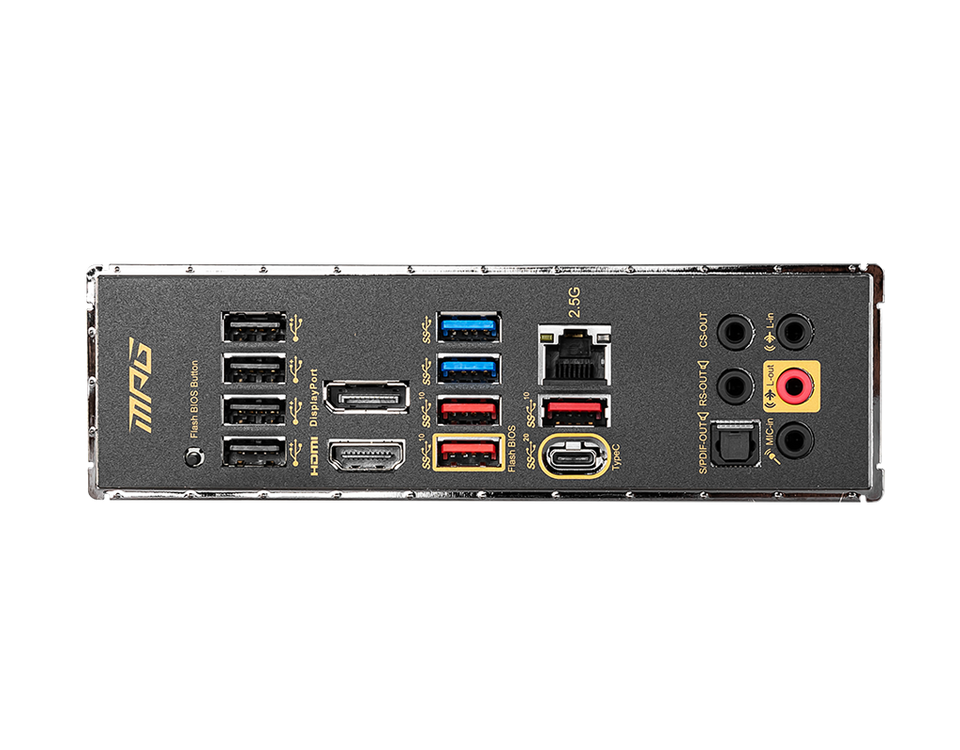

Interfaces/Ports
| S/PDIF | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
Processor & Chipset
| Processor Supported | Core i3 |
| Celeron |
| Core i5 |
| Pentium Gold |
| Core i9 |
| Core i7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Chipset Manufacturer | Intel |
