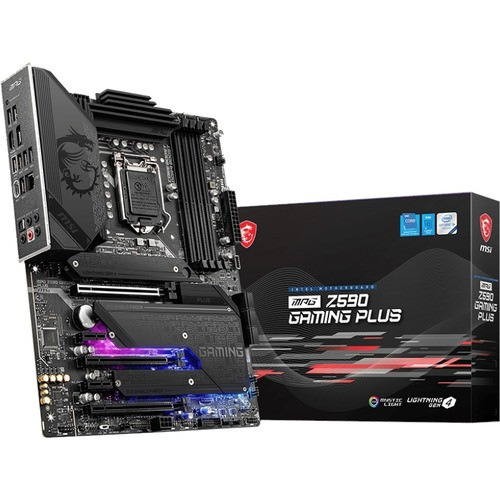

MSI MPG Z590 GAMING PLUS Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 6 x SATA Interfaces MSI MPG Z590 GAMING PLUS ATX
The MSI MGP Z90 Gaming plus motherboard is built to satisty the the best gamers in the world. Designed with the best thermal design for maximum cooling and all the RGB light to make your PC looks cool.
Features
- Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Technical Specs
Audio
| Audio Channels | 7.1 |
Network & Communication
| 2.5Gigabit Ethernet | Yes |
Video
| Onboard Video | CPU Dependent Video |
Warranty
| Limited Warranty | 3 Year |
Miscellaneous
| Country of Origin | China |
| Brand Compatibility | Intel |
Physical Characteristics
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
I/O Expansions
| Number of PCI Express x1 Slots | 2 |
| Number of Total Expansion Slots | 5 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 5 |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 3 |
| Number of Onboard USB 3.2 Ports | 3 |
Memory
| Maximum Memory | 128 GB |
| 128 GB | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 4400 MHz |
| 4700 MHz | |
| 5333 MHz | |
| 4000 MHz | |
| 3200 MHz | |
| 2933 MHz | |
| 2666 MHz | |
| 4700 MHz | |
| 5333 MHz | |
| 2133 MHz | |
| 4400 MHz | |
| 4000 MHz | |
| 2133 MHz | |
| 2666 MHz | |
| 2933 MHz | |
| 3200 MHz | |
| Intel Optane Memory Ready | Yes |
I/O Controller
| RAID Levels | 5 |
| 10 | |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
General Information
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | Z590GPLUS |
| Manufacturer Website Address | http://www.msi.com |
| Manufacturer | MSI |
| Product Model | Z590 GAMING PLUS |
| Product Name | MPG Z590 GAMING PLUS Desktop Motherboard |
| Product Line | MPG |
| Brand Name | MSI |
Interfaces/Ports
| S/PDIF | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
Processor & Chipset
| Processor Supported | Core i9 |
| Pentium Gold | |
| Core i7 | |
| Core i5 | |
| Celeron | |
| Core i3 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Chipset Manufacturer | Intel |
