MSI PRO H410M-B MOTHERBOARD - M-ATX - Intel 12th Gen Processors
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

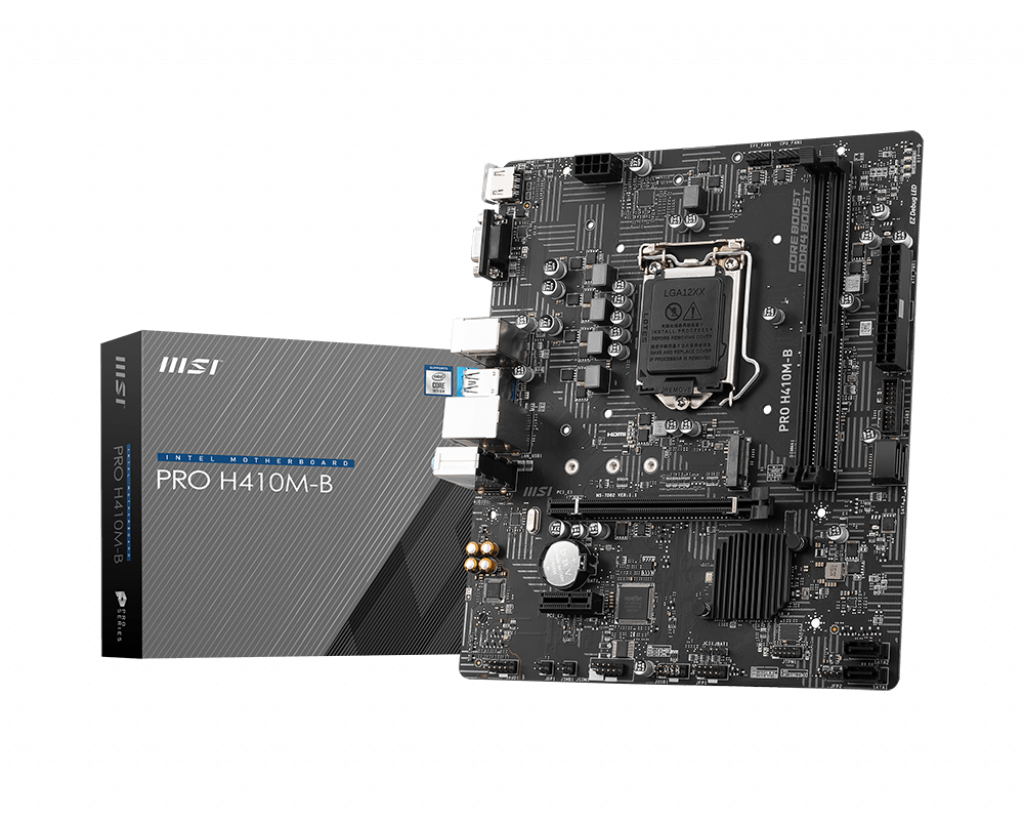

PRO H410M-B
- Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 2933(Max) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost: Reward your ears with studio grade sound quality
BACK PANEL PORTS
- HDMI
- VGA
- Mouse / Keyboard
- USB 3.2 Gen 1 5Gbps Type-A
- LAN port
- Audio connector
- USB 2.0
- USB 2.0
DIMENSIONS
- m-ATX Form Factor
- 9.3 in. x 7.95 in. (23.6 cm x 20.2 cm)
MOUNTING
6 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
BOX CONTENT
TECHNICAL SPEC
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® H510 Chipset |
| DDR4 MEMORY | 2933(MAX) / 2800 / 2666 / 2400 / 2133 MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 2 |
| MAX MEMORY (GB) | 64 |
| PCI-E X16 | 1 |
| PCI-E X1 | 1 |
| SATAIII | 4 |
| M.2 SLOT | 1 |
| TPM (HEADER) | 1 |
| LAN | 1x Realtek® RTL8111 Gigabit LAN controller |
| USB 3.1 PORTS (FRONT) | 2(Gen 1, Type A) |
| USB 3.1 PORTS (REAR) | 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 2 |
| USB 2.0 PORTS (REAR) | 4 |
| SERIAL PORTS(FRONT) | 1 |
| AUDIO PORTS (REAR) | Realtek® ALC892/ ALC897 Codec |
| DISPLAYPORT | 1 |
| VGA | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | Mirco-ATX |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
