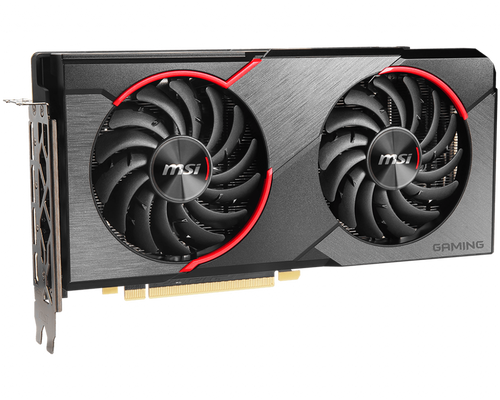

MSI Radeon RX 5500 XT GAMING 4G
Core / Memory
- Boost Clock / Game Clock* / Base Clock / Memory Speed
Up to 1845 MHz / Up to 1733 MHz / 1647 MHz / 14Gbps - 4GB GDDR6
- DisplayPort x 3(v1.4a)
HDMI x 1(Supports 4K@60Hz as specified in HDMI 2.0b)
TORX FAN 3.0: Supremely silent
- Dispersion fan blade: Steeper curved blade accelerating the airflow.
- Traditional fan blade: Provides steady airflow to massive heat sink below.
RGB Mystic Light
- Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components.
Afterburner Overclocking Utility
- Wireless control through Android / iOS devices.
- Predator: In-game video recording.
Dragon Center
- A consolidated platform that offers all software including MYSTIC LIGHT functionality for your MSI Gaming product.
TECHNICAL SPEC
| GRAPHICS PROCESSING UNIT | Radeon™ RX 5500 XT |
| INTERFACE | PCI Express 4.0 |
| CORES | 1408 Units |
| CORE CLOCKS | Boost: Up to 1845 MHz Game: Up to 1733 MHz Base: 1647 MHz(Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.) |
| MEMORY SPEED | 14Gbps |
| MEMORY | 4GB GDDR6 |
| MEMORY BUS | 128-bit |
| OUTPUT | DisplayPort x 3(v1.4a) HDMI x 1(Supports 4K@60Hz as specified in HDMI 2.0b) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 130W (This data is not fixed, it may differ by core clocks.) |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU (W) | 450W |
| CARD DIMENSION(MM) | 247x 128 x 47 mm |
| WEIGHT (CARD / PACKAGE) | 869g/ 1450g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| AFTERBURNER OC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
