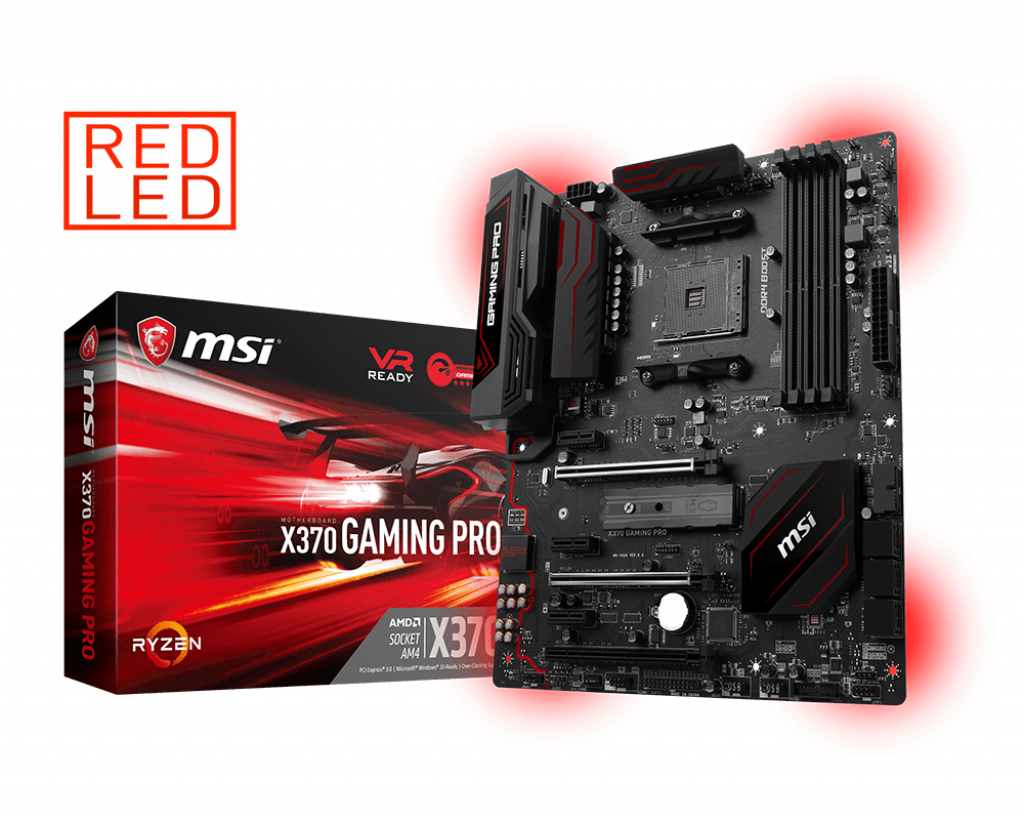

Name: MSI X370 Gaming Pro Motherboard Amd -Yzen 7 -128Gb -Ddr4 Memory1866/ 2133/ 2400/ 2667(Oc)/ 2933(Oc)/ 3200(Oc)+ Mhz
Brand: MSI
SKU: UK-MSI-MSI X370 GAMING PRO
Availability: OutOfStock

MSI X370 Gaming Pro Motherboard Amd -Yzen 7 -128Gb -Ddr4 Memory1866/ 2133/ 2400/ 2667(Oc)/ 2933(Oc)/ 3200(Oc)+ Mhz

Product code: UK-MSI-MSI X370 GAMING PRO

Condition: New

Availability: 3-7+ Business Day - ETA

Request A Quote

Description
Warranty Information
Shipping Policy
Protection Plans

Description

X370 GAMING PRO

PROCESSOR

CHIPSET

MEMORY

A-Eries / Athlon™ X4 processors support up to 2400 MHz only. Please refer www.msi.com for more information on compatible memory.

SLOTS

PCI_E6 slot will be PCIe 2.0 x1 when installing device in any PCIe x1 slot.

ONBOARD GRAPHICS

Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-Eries Processors

Due to CPU spec limitation, when using AMD Athlon™ with Radeon™ Vega Graphics Processors, it could only support HDMI display output.

Maximum shared memory of 2048 MB.

MULTI=PU

STORAGE

AMD^® X370 Chipset

6x SATA 6Gb/s ports
1x M.2 slots (Key M)
- Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (AMD^® Athlon™ with Radeon™ Vega Graphics and A-Eries / Athlon™ X4 Processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
- Supports RAID 0, RAID 1 and RAID 10

USB

ASMedia^® ASM2142 Chipset

1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) TyPE- port on the back panel
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) TyPE- port on the back panel

AMD^® X370 Chipset

4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
6 x USB 2.0 (High=peed USB) ports (2 TyPE- ports on the back panel, 4 ports available through the internal USB connectors)

AMD^® CPU

4 x USB 3.1 Gen1 (SuperSpeed USB) TyPE- ports on the back panel

AUDIO

Realtek^® ALC892 Codec

7.1=hannel High Definition Audio

LAN

INTERNAL CONNECTORS

1 x 24=in ATX 12V power connector

1 x 8=in ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)

2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)

1 x 4=in CPU fan connector

1 x 4=in PUMP fan connector (supports up to 2A)

4 x 4=in system fan connectors

1 x RGB LED connector 1 x TPM module connector

1 x Serial port connector

1 x Parallel port connector

1 x Front panel audio connector

2 x System panel connectors

1 x Chassis Intrusion connector

1 x Clear CMOS jumper

BACK PANEL PORTS

DIMENSIONS

MOUNTING

OPERATING SYSTEM

CPU (MAX SUPPORT)

RYZEN 7

SOCKET

AM4

CHIPSET

AMD® X370 Chipset

DDR4 MEMORY

1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz

MEMORY CHANNEL

Dual

DIMM SLOTS

MAX MEMORY (GB)

128

PCI= X16

PCI= GEN

Gen3(x16/x0, x8/x8), Gen2(x4)

PCI= X1

SATAIII

M.2 SLOT

RAID

0/1/10

TPM (HEADER)

LAN

10/100/1000*1

USB 3.1 PORTS (FRONT)

4(Gen1, Type A)

USB 3.1 PORTS (REAR)

1(Gen2, Type A), 1(Gen2, Type C), 4(Gen1, Type A)

USB 2.0 PORTS (FRONT)

USB 2.0 PORTS (REAR)

SERIAL PORTS(FRONT)

AUDIO PORTS (REAR)

DVI=

HDMI

DIRECTX

FORM FACTOR

ATX

SLI

CROSSFIRE

OPERATING SYSTEM

Support for Windows® 10 64=it
Support for Windows® 7 64=it
* To support Windows® 7 64=it, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
