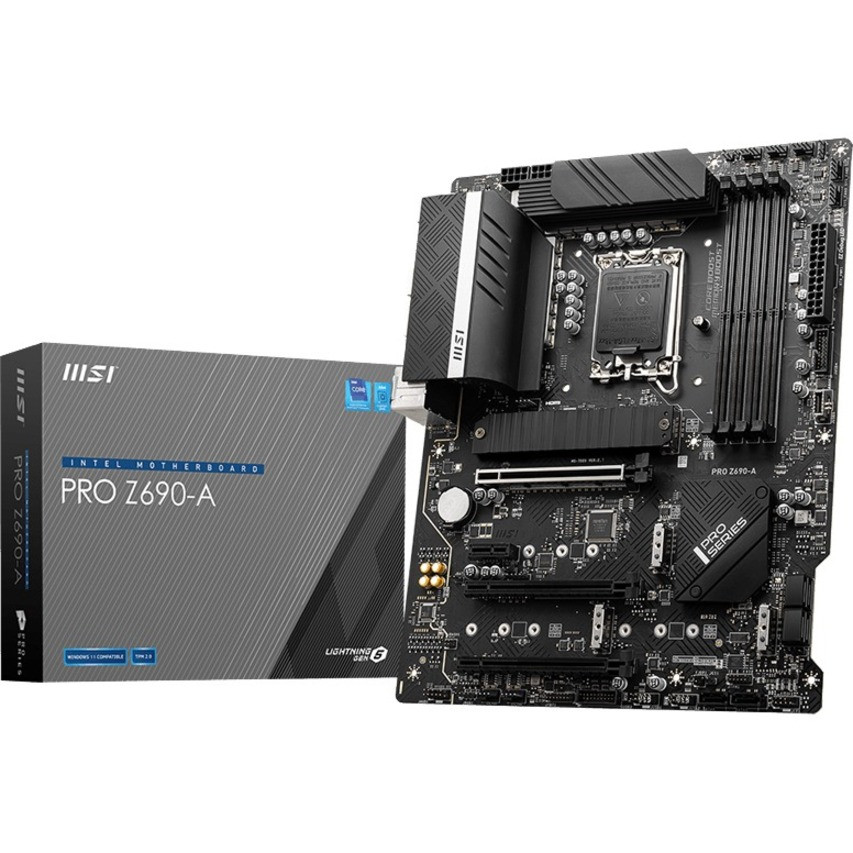

MSI Z690-A Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 6 x SATA Interfaces
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 digital CPU power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work. Features
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6400+(OC) MHz
- Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
Technical Specs
Audio
| Audio Channels | 7.1 |
Network & Communication
| 2.5Gigabit Ethernet | Yes |
Video
| Onboard Video | CPU Dependent Video |
Warranty
| Limited Warranty | 3 Year |
Miscellaneous
| Package Contents |
|
| Brand Compatibility | Intel |
Physical Characteristics
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
I/O Expansions
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 4 |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 4 |
| Number of Onboard USB 3.2 Ports | 5 |
Memory
| Maximum Memory | 128 GB |
| 128 GB | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 4800 MHz |
| 4800 MHz | |
| 6400 MHz | |
| 4000 MHz | |
| 5400 MHz | |
| 5400 MHz | |
| 6400 MHz | |
| 4000 MHz | |
| Intel Optane Memory Ready | Yes |
I/O Controller
| RAID Levels | 10 |
| 5 | |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
General Information
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | PROZ690A |
| Manufacturer Website Address | http://www.msi.com |
| Manufacturer | MSI |
| Product Model | Z690-A |
| Product Name | PRO Z690-A Desktop Motherboard |
| Product Series | PRO |
| Brand Name | MSI |
Interfaces/Ports
| S/PDIF | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
Processor & Chipset
| Processor Supported | Core i9 |
| Pentium Gold | |
| Core i5 | |
| Celeron | |
| Core i7 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Manufacturer | Intel |
| Processor Generation Supported | 12th Gen |
