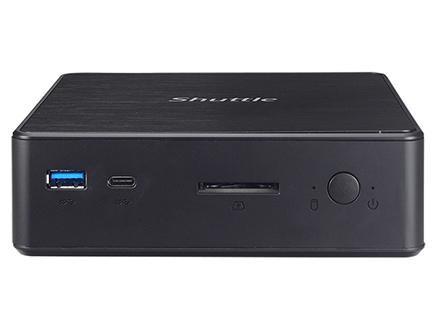

The XPC nano is Shuttle's smallest product lines with only palm size. Shuttle's NC03U series supports Intel Kaby lake-U platform technology. The NC03U series includes four different embedded CPU options with Celeron, Core i3, Core i5, and Core i7 and has two DDR4 SODIMM slots to support a maximum of 32GB. With built-in Intel HD graphics series allows these ultra-compact machines to have ample performance for playback 4K/Ultra HD at 60Hz via HDMI and DisplayPort. Same as the NC02 series, a new mechanism design allows for easy installation of memory modules and storage and the case can accommodate one 2.5" HDD (up to 15mm) to provide a more flexible storage capacity. Despite its small size, the NC03U series with full PC experience has a great connectivity with multiple I/O ports-- USB3.0 , USB2.0, RS232, and built-in SATA 6G and M.2 high speed storage interface. Its small and elegant design makes this series as a portable mini PC fit for home, office, POS, and even Digital signage.

• Primary Information

  Model:	NC03U
  System Type:	Personal Computer
  Cabinet Form Factor:	Desktop
  Processor / Type:	Celeron
  Processor / Clock Speed:	1.80 GHz
  Processor / Number:	3865U
  RAM / Total Installed Size:	4.00 GB
  Hard Drive Capacity / HDD:	N/A
  Graphics Controller:	Intel HD Graphics
  Operating System:	Microsoft Windows 10 Professional
  Service & Support Type:	3 Years Warranty

• Dimensions&Miscellaneous

  Width:	5.59 Inch
  Depth:	5.59 Inch
  Height:	1.65 Inch

• Processor

  Processor / Type:	Celeron
  Processor / Clock Speed:	1.80 GHz
  Processor / Manufacturer:	Intel
  Processor / Number:	3865U

• Memory

  Cache Memory Type:
  RAM / Technology:	TBD
  RAM / Max Supported Size:	32 GB

• Storage

  Hard Drive Capacity / HDD:

  N/A

• Networking

  Data Link Protocol:

  Gigabit Ethernet; IEEE 802.11 b/g/n

• Software

  Operating System:

  Microsoft Windows 10 Professional

• Service&Support

  Service & Support Type:

  3 Years Warranty

• UNSPSC Code

  UNSPSC Code:

  43211508
