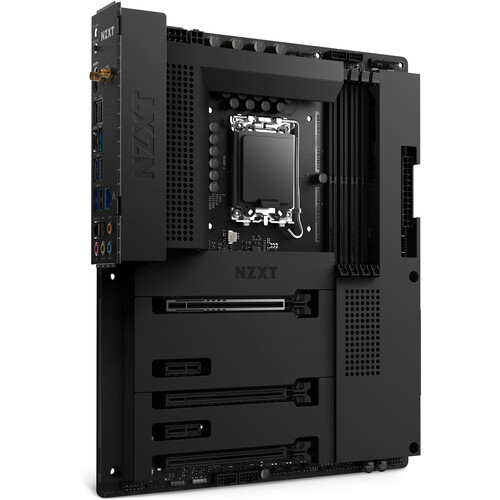

NZXT N7 Z690 LGA 1700 ATX Motherboard (Black) - N7-Z69XT-B1
Bring easy lighting control and robust gaming performance to your build with the N7 Z690 LGA 1700 ATX Motherboard in black from NZXT. Sporting an Intel LGA 1700 socket and the Z690 chipset, this ATX motherboard is compatible with 12th Gen Intel Core i3, i5, i7, and i9 processors, as well as Celeron Gold and Pentium CPUs. Install up to 128GB of dual-channel RAM in four slots supporting speeds up to 5000 MHz when overclocking. Three PCIe x16 slots and support for AMD 2-way CrossFireX enable powerful graphics performance, while two PCIe 3.0 x1 slots accommodate additional adapter cards. Install storage via four SATA III interfaces and three M.2 PCIe 4.0 slots. RAID support allows for storage flexibility and optimal performance.
Connect to wired accessories via a USB-C 3.2 Gen 2 port, as well as two USB-A 3.2 Gen 2, three USB-A 3.2 Gen 1, and two USB-A 2.0 ports. Output video via HDMI and connect audio components using a S/PDIF output and five 3.5mm analog jacks supporting 5.1 surround sound setups. In addition to Clear CMOS and BiOS Flashback buttons, the rear panel also sports a 2.5 GbE RJ45 port for fast wired networking. Or, use Wi-Fi 6E for fast and secure wireless internet. Bluetooth 5.2 allows for easy pairing to wireless peripherals. Internal headers provide support for RGB lighting, front-panel USB-A and C ports, up to five system fans, a liquid cooling pump, and more. The N7 Z690 LGA 1700 ATX Motherboard is compatible with Windows 10 and 11 64-bit operating systems.
- All-metal cover completes the look of your build
- Digital RGB lighting control through NZXT CAM
- Digital fan control with profiles within NZXT CAM for seven independent fan channels
- Integrated rear I/O shield and efficient layout ensures optimal setup
- Designed for easy upgradeability
- ATX Form Factor
- Intel Z690 Chipset
- LGA 1700 Socket
- 4 x Dual-Channel DDR4 RAM Slots
- 4 x SATA III, 3 x M.2
- PCIe 5.0, PCIe 4.0 & PCIe 3.0 x16 Slots
- 2 x PCIe 3.0 x1 Slots
- Wi-Fi 6E (802.11ax) | Bluetooth 5.2
- USB 3.2 Gen 2, Gen 1 & 2.0 Ports
- Supports Windows 10 & 11 (64-Bit)
