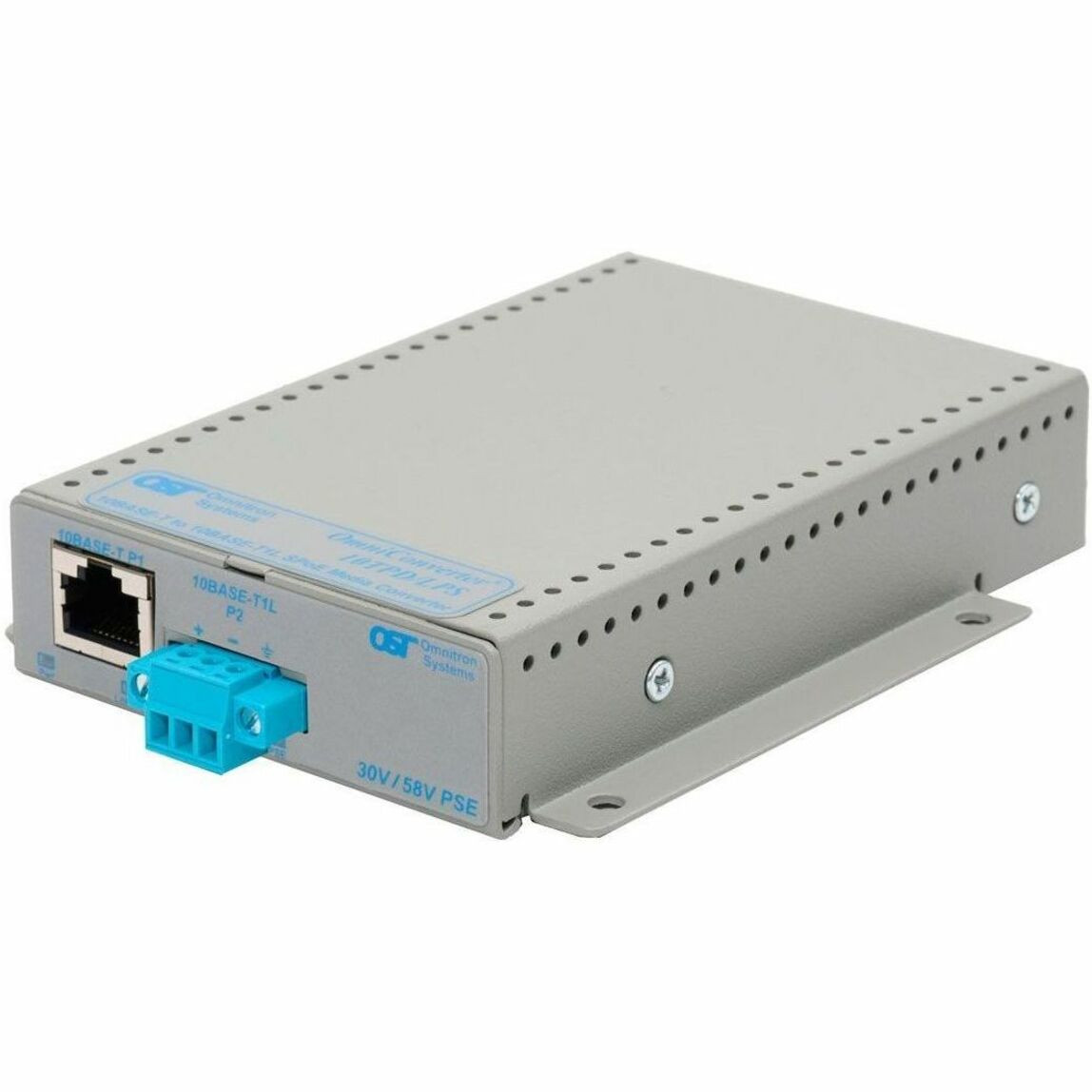

Omnitron OmniConverter 10TPS/LPD58 1 x 10BASE-T PoE+ RJ-45 and 1 x 10BASE-T1L PD Terminal SPoE, No Power AC Barrel, Wall Mount - 1 x 10BASE-T, 1 x 10BASE-T1L, US AC Powered, Lifetime Warranty - 2045-00-10
The OmniConverter Single Pair Power over Ethernet converters are IEEE 802.3cg compliant products that function as PoE injectors and Powered Devices. They convert 10BASE-T PD Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 1km. The Single Pair Power over Ethernet converters feature one IEEE 802.3cg compliant 10BASE-T1L terminal or IEC 63171-1 or IEC 63171-2 or IEC 63171-6 SPE port and one 10BASE-T PD RJ-45 port supporting 10Mbps full-duplex data rates.
- Unmanaged 10BASE-T to 10BASE-T1L Single-Pair Power over Ethernet converter
- IEEE 802.3cg single-pair Ethernet on terminal or IEC 63171-2 SPE connector
- Power over Ethernet: 10BASET - PoE+/PSE or PoE+/PD - 10BASE-T1L - SPoE/PSE or SPoE/PD
- Automatic detection of Class 10 through Class 15 PD devices
- 12VDC or 24VDC Power Splitter output
- AC to DC Power Adapter or 2-Pin DC terminal
- DIN-rail mount with optional brackets
- Commercial (0 to +50ºC), wide (-40 to +60ºC) and extended (-40 to +75ºC) operating temperature ranges
- TAA, BAA and NDAA compliant
- Made in the USA
