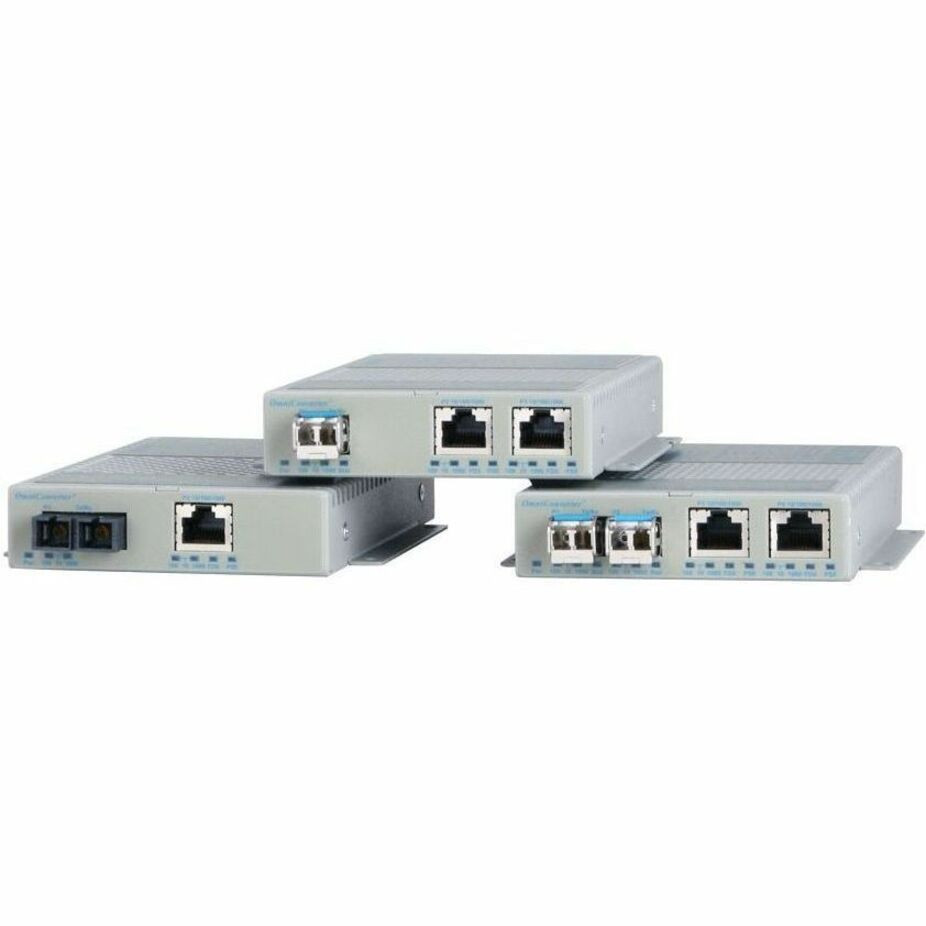

Omnitron OmniConverter GHPoEBT/S Transceiver/Media Converter - 2 x Network (RJ-45) - 2 x 60W PoE (RJ-45) Ports - 1 x LC Ports - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 1000 Mbit/s - 9507B-1-21Z
The OmniConverter GPoE/SE and GPoE+/SE are cost-effective, multi-port media converters that convert 10/100/1000BASE-T copper to 1000BASE-X fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch, and supports single or dual RJ-45 ports.
OmniConverter PoE media converters provide network distance extension with fiber optic cabling, and function as PoE injectors that enable powering devices such as IP-phones, surveillance cameras and wireless access points with Power over Ethernet (PoE).
The OmniConverter GPoE/SE and GPoE+/SE support frame sizes up to 10,240 bytes. The GPoE/SE provides up to 15.40W PoE (IEEE 802.3af) per RJ-45 port. The GPoE+/ SE provides up to 30W PoE+ (IEEE 802.3at) per RJ-45 port for more demanding PDs such as video conferencing equipment, PTZ (pan-tilt-zoom) cameras and multi-stream 802.11x wireless access points.
The OmniConverter PoE media converters are available with fixed fiber ST and SC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fiber ports support multimode or single-mode and dual fiber or single fiber. SFP models support 1000Mbps standard, CWDM and DWDM transceivers in a variety of distances and fiber types.
The compact standalone OmniConverter media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC power via terminal connectors or external 100 to 240V AC power adapters
- Multi-port media converter and PoE Power Sourcing Equipment
- 10/100/1000BASE-T copper to 1000BASE-X fiber media converter
- Supports 1000BASE-X fixed-fiber and 1000BASE-X standard, CWDM and DWDM SFP transceivers
- Supports frame sizes up to 10,240 bytes
- The GPoE/SE supports IEEE 802.3af PoE on one or two RJ-45 copper ports
- The GPoE+/SE supports IEEE 802.3at PoE+ on one or two RJ-45 copper ports
- Multiple port configurations: 2 Port Device: 1 Fiber + 1 RJ-45-3 Port Device: 1 Fiber + 2 RJ-45
- Plug and Play
- Available in AC and DC models
- Integrated wall mount brackets
